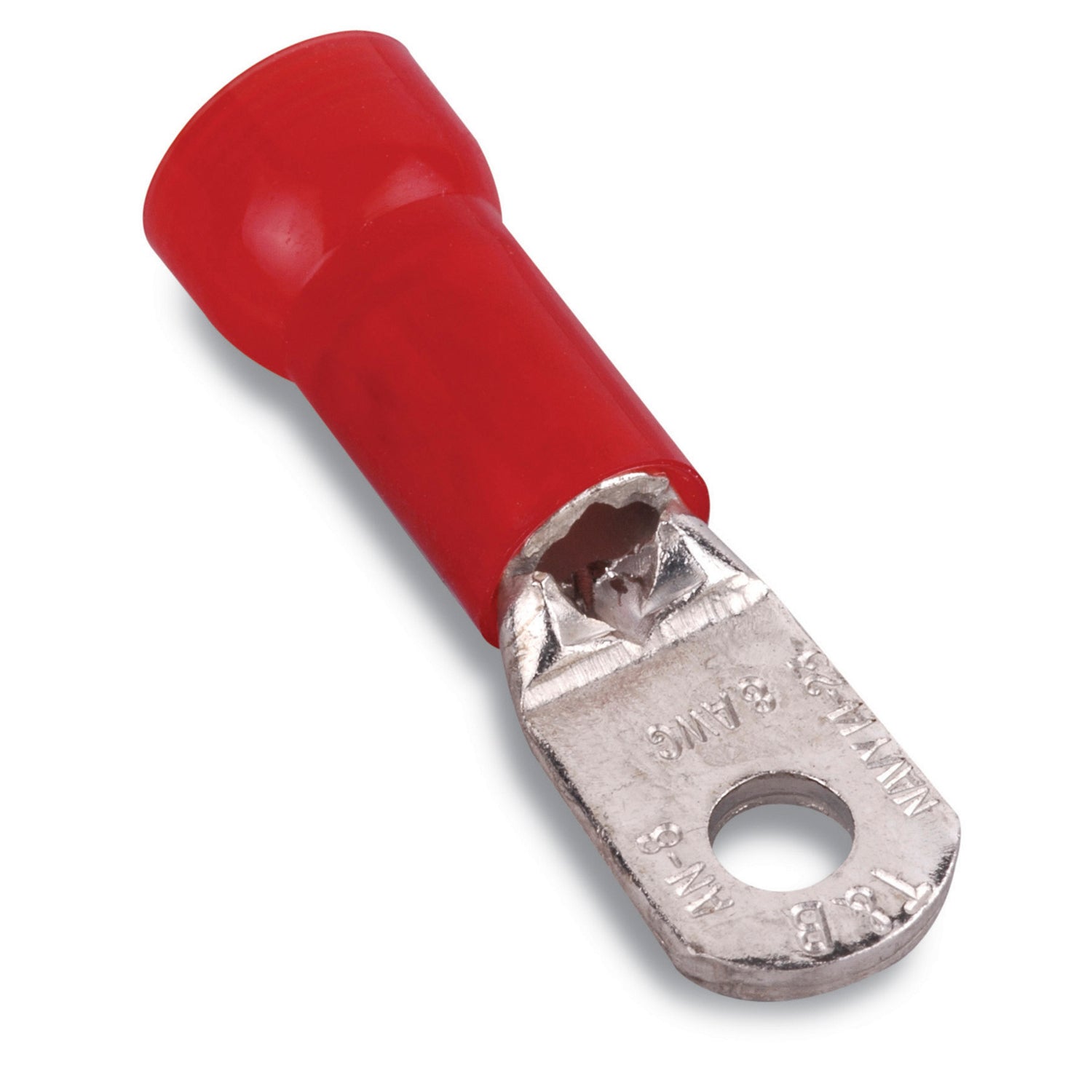

ABB RD367 Thomas & Betts RD367 8 AWG Wire Range #10 Bolt Hole Red Insulated Nylon Ring Terminal

Product Description

ABB RD367 is a nylon insulated ring terminal designed for efficient electrical connections. The terminal accommodates an eight AWG wire range and features a #10 bolt hole. It comes in a vibrant red color and is crafted from copper with a tin plated finish for corrosion resistance.

• Wire Size: 8 AWG
• Length: 1.48 inches, Width: 0.42 inches
• Voltage Rating: 600 VAC

Product Highlights

This product includes a funneled barrel design for optimal wire insertion. The internal serrations enhance connection reliability, guaranteeing a secure fit. Packaged in a bulk quantity of two hundred, it is suitable for various electrical applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: RD367

Technical Specifications

• Material: Copper
• Insulation Type: Insulated Nylon
• Finish: Electro Tin Plated
• Stud Size: #10
• Temperature Rating: 105 degrees C
• Maximum Insulation Diameter: 0.34 inches
• Clearance Diameter: 0.28 inches
• Standards/Approvals: UL Listed, CSA Certified
