Product Description

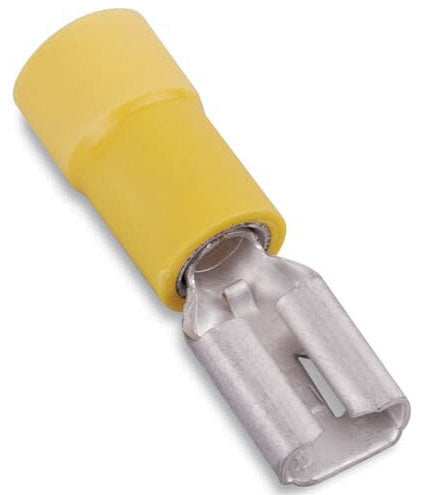

ABB's RC257 is a female disconnect designed for 12 to 10 AWG conductors. This terminal features a width of 0.25 inches and a thickness of 0.032 inches for its tab. The component is suitable for crimping, supporting voltages up to 600 VAC and a temperature rating of one hundred five degrees Celsius. The product is crafted from brass with an electroplated tin finish for durability.
- Suitable for crimping applications
- Compatible with various tools like WT145C and ERG4001
- Fully insulated for user safety
Product Highlights
The RC257 female disconnect terminal ensures reliable electrical connections in various electrical applications.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
Category: Electrical > Wiring Connectors > Small Crimp Terminals & Splices > Female Crimp Terminals
Technical Specifications
-
Color: Yellow
-
Conductor Size: 12 to 10 AWG
-
Dimensions: 1.03 inches L x 0.29 inches W
-
Finish: Electroplated Tin
-
Insulated: Fully Insulated
-
Material: Brass
-
Series: 250
-
Specifications: 1/4 inch Dia Maximum Insulation, 0.04 inch THK Stock
-
Standards/Approvals: UL File No. E66716 | CSA Certified | UL 94 V-0 Flammability Rating
-
Tab Size: 0.25 inches W x 0.032 inches THK
-
Temperature Rating: 105 degrees C
-
Terminal Type: Crimp
-
Voltage Rating: 600 VAC
