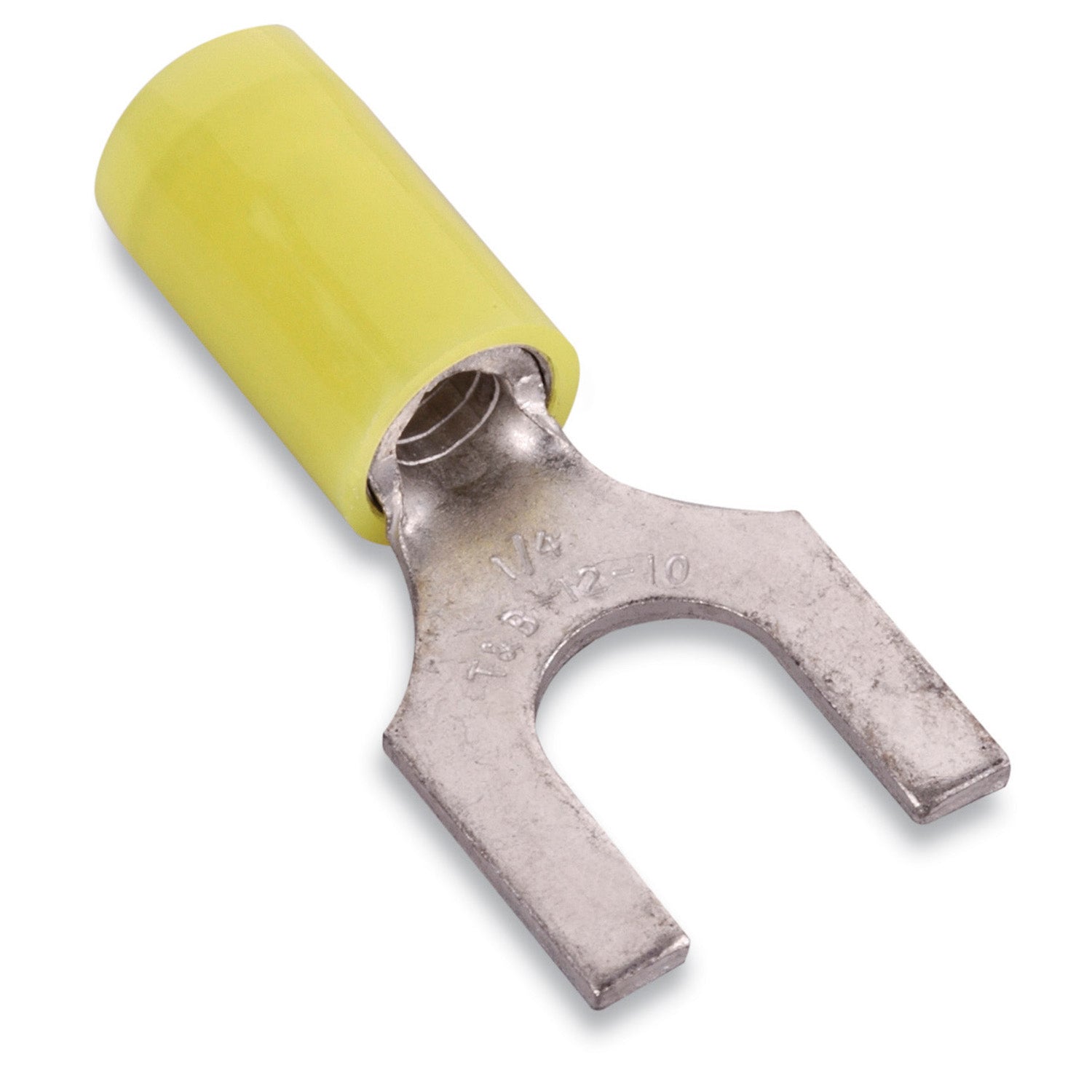

ABB RC1153 T&B Insul Fork Terminal, 12 to 10 AWG Conductor, 1 in L, RC1153

Product Description

The ABB RC1153 T&B Insulated Fork Terminal is designed for use with conductors sized twelve to ten AWG. This terminal has a length of one inch and features a brazed seam and serrated barrel construction. It is suitable for applications that require reliable connections in electrical wiring systems.

• Insulated for safety and reliability
• Compatible with #10 studs
• Rated for up to 600 VAC

Product Highlights

The terminal is constructed from copper with an electroplated tin finish, ensuring both conductivity and resistance to corrosion. The nylon insulation provides added protection and is color-coded for easy identification. Recommended tools for installation include WT112M, WT145A, WT145C, WT2000, ERG4001, and ERG4003.

Product Information

Standard Information

• Brand: ABB - Installation Products
• UPC: 78621082029

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Stud Size: #10
• Material: Copper
• Length: 1 inch
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Specifications: 0.21 inch Diameter Maximum Insulation, 0.27 inch Clearance, Nylon Insulation
• Series: RC Series
• Color: Yellow
• Finish: Electroplated Tin
• Tongue Size: 0.37 inch Width x 0.04 inch Thickness
• Tongue Type: Fork
• Standards/Approvals: CSA Certified, UL 94 V-2 Flammability Rated, UL File No. E9809
