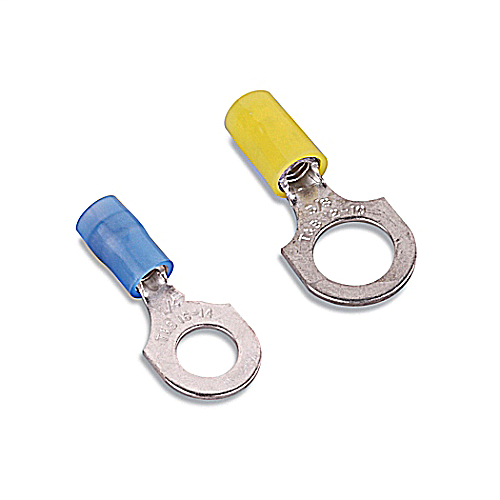

ABB RC10-8 Nylon-Insulated Ring Terminal - #12-10, #8bolt

Product Description

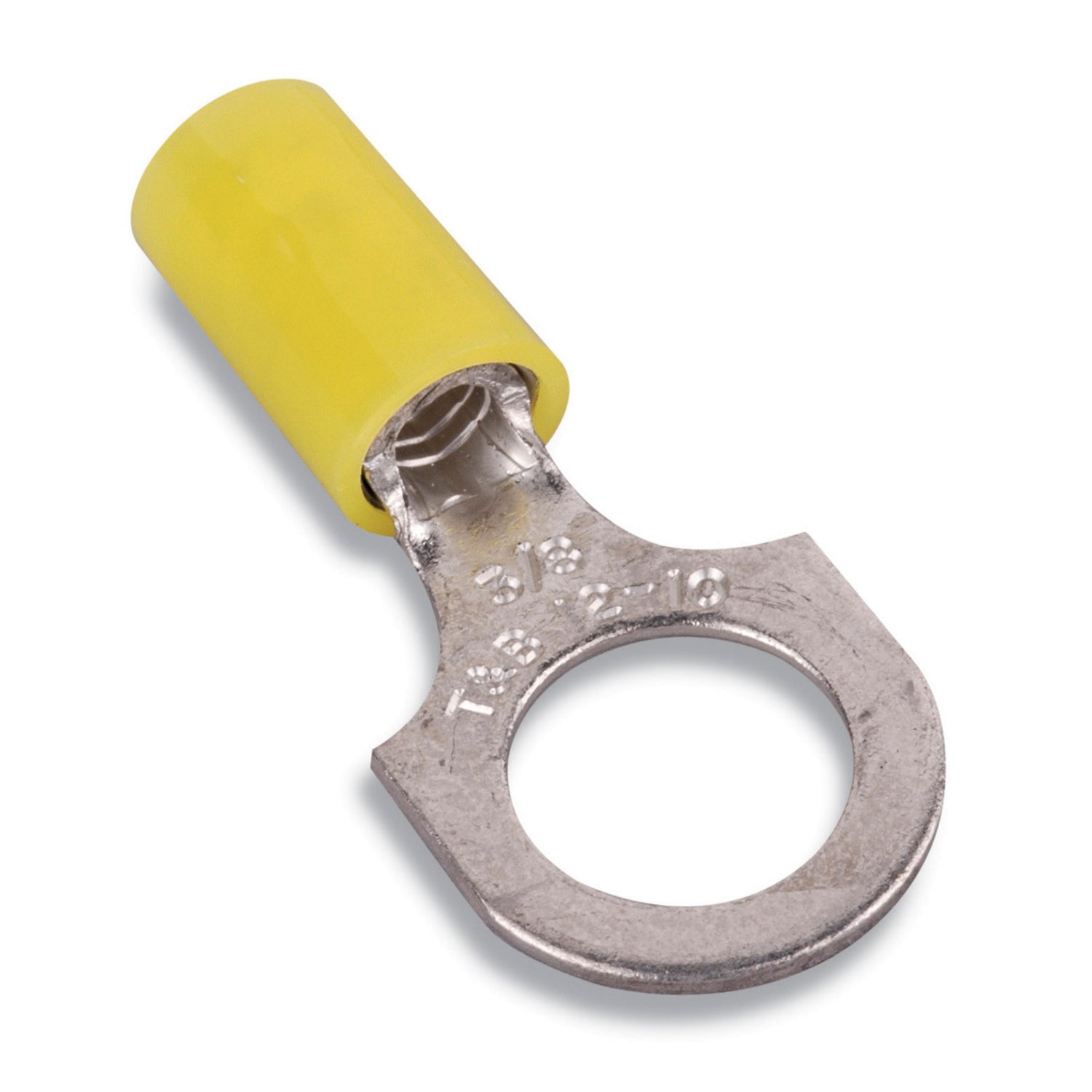

The ABB RC10-8 is a nylon-insulated ring terminal designed for wire connections ranging from #12 to #10 AWG. It features a #8 bolt hole and measures one inch in length. The terminal is made from high-quality copper with a tin-plated finish for enhanced conductivity and corrosion resistance.

• Suitable for various applications including use with WT2000, WT112M, WT145C, ERG4001, and ERG4003 tools.
• Self-insulated with high dielectric strength nylon sleeves to secure conductor connections.
• Rated for a maximum voltage of 600 VAC with a temperature rating of 105 degrees Celsius.

Product Highlights

This insulated ring terminal is ideal for reliable electrical connections in various electrical projects.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Length: 1 inch
• Width: 0.37 inch
• Max Insulation Diameter: 0.21 inch
• Stud Size: #8
• Material: Copper
• Finish: Electro Tin Plated
• Flammability Class: Rated V-2 per UL94
• Wire Size: 12-10 AWG
