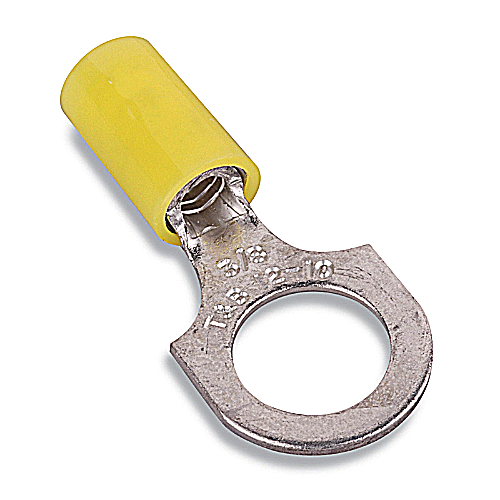

ABB RC10-38 Thomas & Betts RC10-38 12 to 10 AWG 3/8 Inch Stud Yellow Electrotinned Copper Nylon Insulated Ring Terminal

Product Description

The ABB RC10-38 is a nylon insulated ring terminal designed for wire connections in electrical applications. It is suitable for use with wire sizes ranging from twelve to ten AWG and features a three-eighth inch stud size. This product is constructed from copper with a tin plating for enhanced conductivity and corrosion resistance.

• Voltage Rating: 600 Volt
• Temperature Rating: 105 degrees C
• Insulation Type: Insulated Nylon

Product Highlights

The ring terminal includes a self-insulated design with high dielectric strength nylon sleeves. It features an inner bronze insulation grip sleeve that helps reduce conductor creep.

Product Information

Standard Information

• Brand: ABB
• Material: Copper

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Stud Size: 3/8 inch
• Thickness: 0.04 inches
• Maximum Insulation Diameter: 0.21 inches
• Insulation Grip Sleeve Length: 1.27 inches
• Width: 0.59 inches
• Series: RC Series
• Finish: Tin Plated
