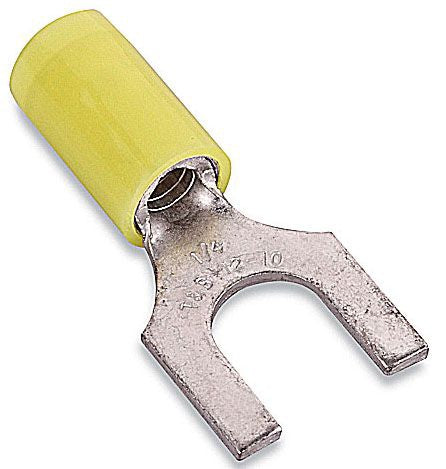

Abb RC10-10F Insulated Spade Terminal 12-10 Awg

Product Description

The ABB RC10-10F is an insulated spade terminal designed for secure, vibration-resistant wire termination in electrical wiring applications. This crimp-style connector accommodates 12-10 AWG wire, making it suited for medium-duty wiring runs found in HVAC equipment, control panels, and general electrical installations. The insulated barrel protects the crimp zone from incidental contact and environmental exposure. Electricians and HVAC technicians install these terminals to terminate stranded or solid copper conductors at screw lugs, bus bars, or equipment terminal strips without soldering.

The RC10-10F is a standard choice for residential and light commercial wiring tasks where a reliable, insulated spade connection is required. Typical applications include control panel wiring, motor lead terminations, and equipment grounding connections. The spade tongue style allows for quick installation and removal at terminal screws without fully disconnecting the fastener, which is useful during service and maintenance work on HVAC systems, electrical enclosures, and similar equipment.

Key Features

• Accepts 12-10 AWG wire for medium-duty termination applications
• Insulated barrel provides electrical protection at the crimp zone
• Spade tongue design allows installation and removal without fully backing out the terminal screw
• Crimp-style termination eliminates the need for soldering
• Suited for use in control panels, HVAC equipment, and general electrical wiring

Compatibility

Designed as a standard insulated spade terminal for use with 12-10 AWG copper conductors in residential and light commercial electrical and HVAC wiring applications.

Installation Notes

Installation is performed by licensed electricians or HVAC technicians. De-energize all circuits and follow applicable NEC lockout/tagout procedures before terminating or replacing wiring connections. Use a calibrated ratcheting crimp tool rated for insulated terminals to ensure a proper crimp and avoid compromising the insulation sleeve. Do not use pliers or uncalibrated tools as substitutes, as an improper crimp can result in a high-resistance connection or pull-out failure.

Technical Specifications

• Wire Range: 12-10 AWG
• Terminal Type: Insulated Spade
• Termination Method: Crimp
• UPC: 78621080439

Standard Information

• Brand: ABB
• Manufacturer Part Number: RC10-10F
