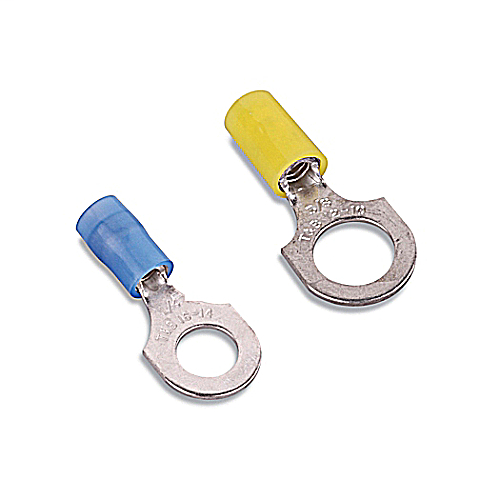

ABB RC10-10 Nylon-Insulated Ring Terminal - #12-10, #10bolt

Product Description

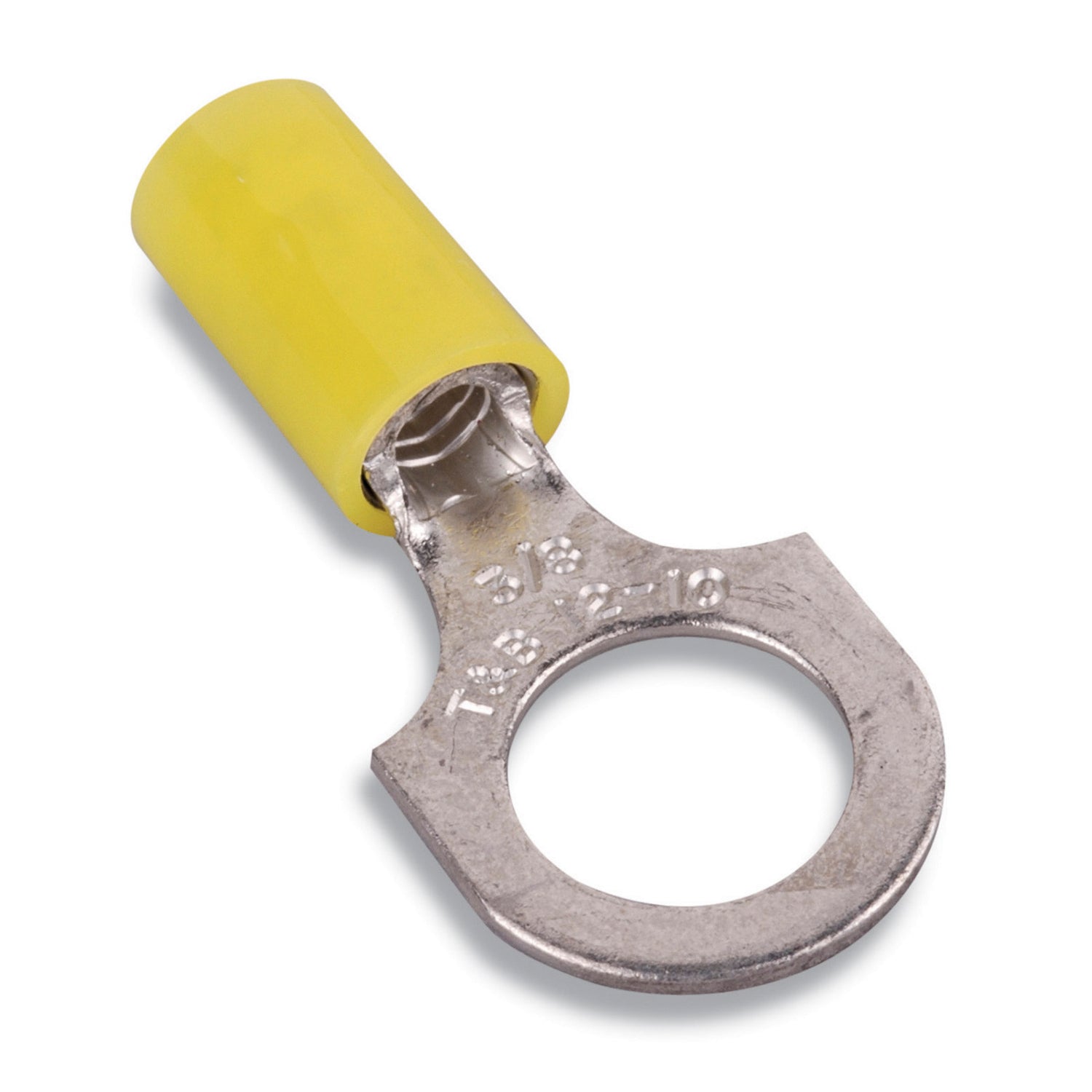

The ABB RC10-10 is a nylon-insulated ring terminal designed for use with wire sizes ranging from twelve to ten AWG. This terminal features a maximum insulation diameter of 0.21 inches and includes a #10 bolt hole. The length of the terminal measures one inch and the width is 0.37 inches.

• Compatible with #12 to #10 AWG wire sizes
• Maximum insulation diameter of 0.21 inches
• Constructed from copper with electro-tin plating for durability

Product Highlights

This product is suitable for various electrical applications, including use with tools like WT2000 and WT112M. It provides a reliable connection through its insulation grip sleeve design, which prolongs the life of the connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: RC10-10
• Length: 1 inch
• Width: 0.37 inches
• Maximum Insulation Diameter: 0.21 inches
• Stud Size: #10
• Wire Size: 12-10 AWG
• Material: Copper
• Finish: Electro Tin Plated
• Temperature Rating: 105 degrees C
• Voltage Rating: 600 VAC
