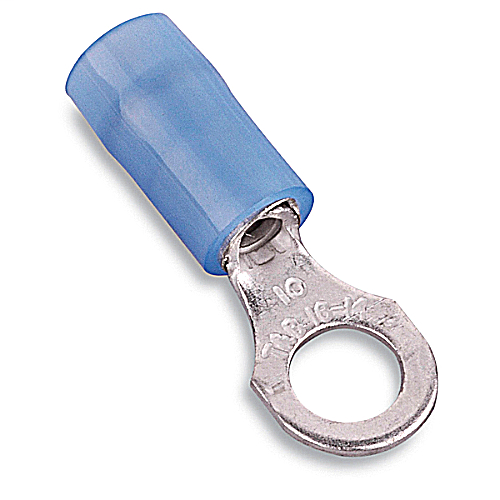

ABB RB873 Nylon-Insulated Ring Terminal - #18-14, #10bolt (1000/Box)

Product Description

The ABB RB873 is a nylon-insulated ring terminal designed for efficient and reliable connections in electrical applications. This terminal accommodates a wire range of #18 to #14 AWG and features a #10 bolt hole. The terminal is packaged in a box of one thousand units, making it suitable for large projects.

• Wire range: #18 to #14 AWG
• Maximum insulation diameter: 0.162 inches
• Voltage rating: 600 VAC

Product Highlights

This insulated ring terminal is made of copper and is tin plated to enhance conductivity and resist corrosion. Designed with an insulated nylon sleeve, it provides a secure grip on the conductor to prevent creep and ensure a reliable connection. Ideal for harsh environments with a temperature rating of 105 degrees Celsius, it meets various industry standards.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co.

Technical Specifications

• Conductor Size: 18 to 14 AWG
• Stud Size: #10
• Length: 0.89 inches
• Width: 0.31 inches
• Insulation Type: Insulated Nylon
• Material: Copper
• Finish: Electro Tin Plated
• Specifications: 0.162 inches maximum insulation diameter, 1/4 inches clearance
