Product Description

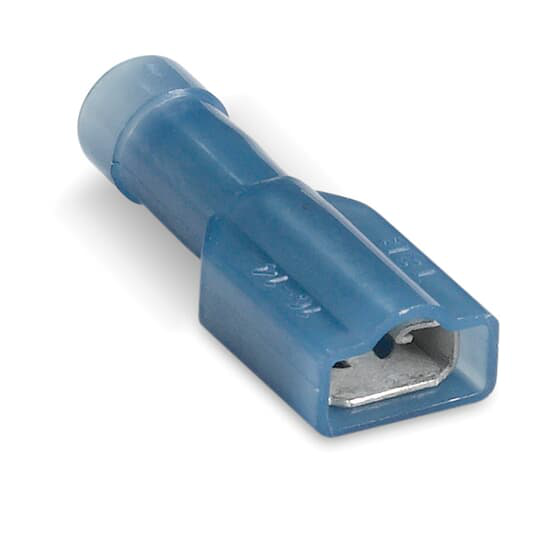

The ABB RB2573 is a nylon fully-insulated female disconnect designed for reliable connections. This disconnect accommodates wire sizes from sixteen to fourteen AWG. It features a tab size of .250 inches by .032 inches and a maximum insulation diameter of .185 inches. Constructed from brass and electroplated with tin, this disconnect is sold in packs of one thousand.
- Fully insulated design for enhanced safety
- Durable brass construction with a brazed seam
- Compatible with a variety of crimping tools
Product Highlights
This disconnect is suited for various electrical applications, providing a secure and dependable connection in wire assemblies.
Product Information
Standard Information
-
Type: Short Sleeve
-
Color: Blue
Technical Specifications
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 degrees C
-
Material: Brass
-
Insulation Type: Fully Insulated Nylon
-
Dimensions: 1.01 inches length x 0.38 inches width
-
Tab Size: 0.25 inches width x 0.032 inches thick
-
Insulation Material: Nylon
-
Series: 250
