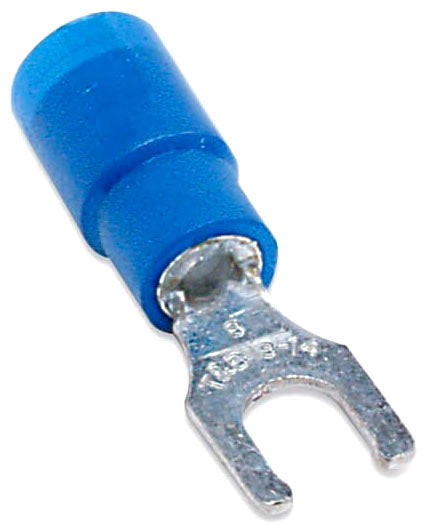

ABB RB2237-200 T&B EXP INS VINYL LKG FORK TERM 18 to 14 AWG #8

Product Description

ABB offers the RB2237-200 Sta-Kon Fork Terminal. This terminal is designed for use with conductors from eighteen to fourteen AWG. It features a brazed seam and serrated barrel for enhanced hold. The terminal is suitable for applications needing up to 600 VAC.

• Locking fork design ensures secure connections.
• Constructed from copper with a vinyl insulation coating.
• Rated for a maximum temperature of one hundred five degrees Celsius.

Product Highlights

This Sta-Kon product delivers reliable connectivity in various electrical applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621081947

Technical Specifications

• Type: Expanded Insulated
• Color: Blue
• Conductor Size: 18 to 14 AWG
• Stud Size: #8
• Length: 0.97 in
• Material: Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 105 deg C
• Tongue Size: 0.31 in W x 0.03 in THK
• Tongue Type: Locking Fork
• Finish: Electroplated Tin
• Standards/Approvals: CSA Certified, UL 94 V-0 Flammability Rated
