ABB RB14-250A 16-14 AWG Wire Range 0.8 Inch Length 0.250 Inch Tab Size

Product Description

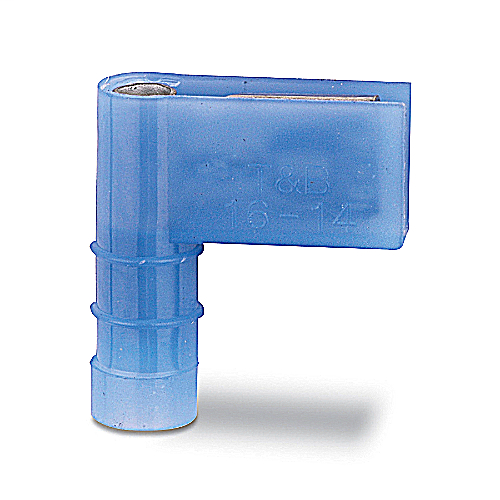

The ABB RB14-250A is a nylon insulated female disconnect terminal with a wire range of 16 to 14 AWG. The terminal has a flag design and features an open top for easier wire insertion. It measures 0.8 inches in length and has a maximum insulation diameter of 0.19 inches. The tab size is 0.250 inches wide and 0.032 inches thick.

• Nylon insulated for added durability
• Compatible with round conductors
• Designed for crimping with various tools including WT145C and WT2000

Product Highlights

This terminal provides a reliable connection for your electrical needs and meets safety standards including UL and CSA certifications.

Product Information

Standard Information

• Manufacturer: Thomas & Betts Co
• Brand: ABB

Technical Specifications

• Length: 0.8 inches
• Width: 0.72 inches
• Insulation Type: Nylon
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Tab Size: 0.25 inches x 0.032 inches
• Material: Brass with Electro-Tin plating
• Standards: UL Listed, CSA Certified
