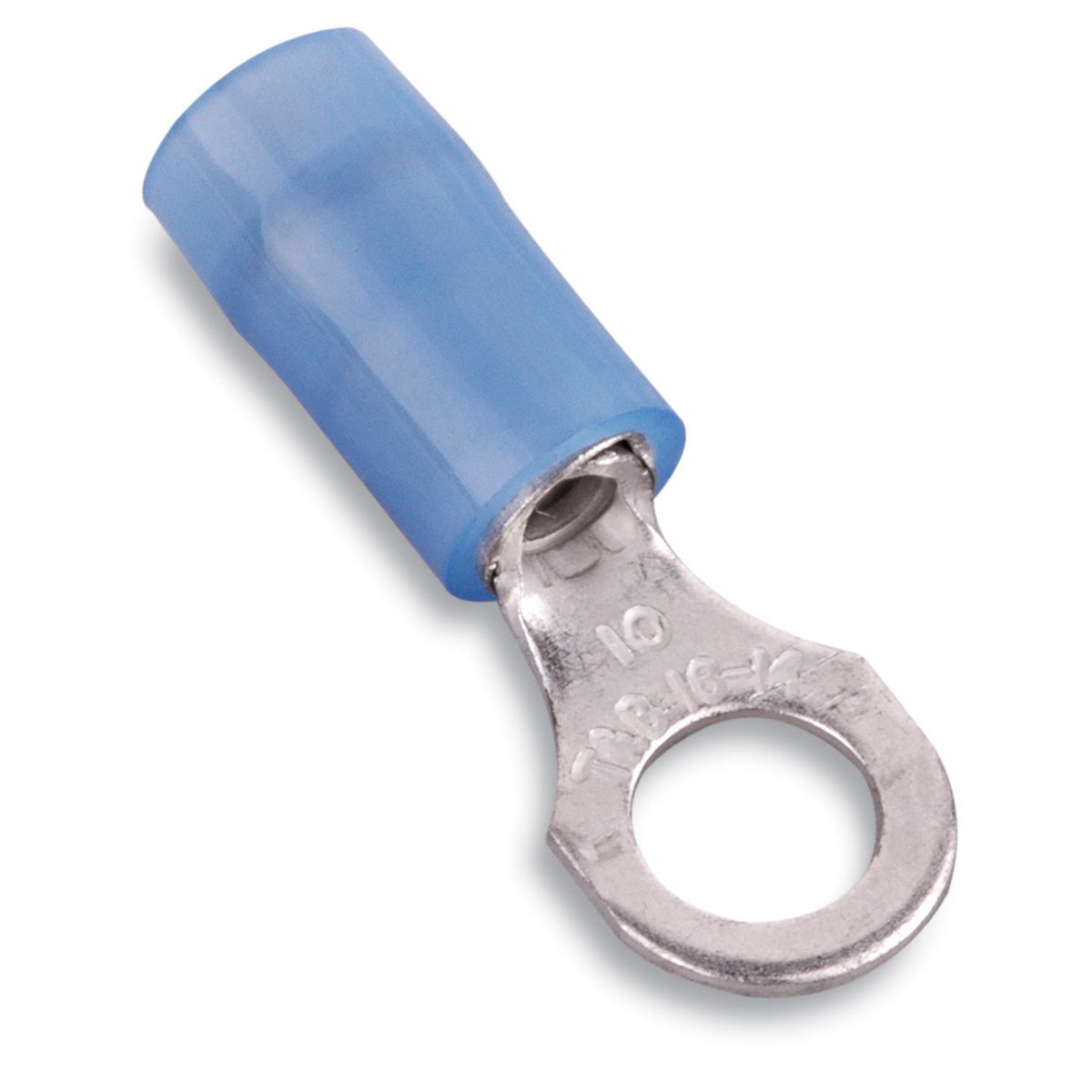

ABB RB14-10 Insulated Ring Terminal 18 to 14 AWG - RB14-10

Product Description

The ABB RB14-10 is an insulated ring terminal designed for use with conductors sized 18 to 14 AWG. This terminal features a durable nylon insulation grip sleeve that protects connections against environmental damage. The product is suitable for #10 stud connections and has a length of zero point eight nine inches.

• Self-insulated with high dielectric strength nylon sleeves.
• Made of copper with electro-tin plating for increased conductivity and corrosion resistance.
• Perfect for a variety of electrical applications.

Product Highlights

The RB14-10 offers reliability in a range of settings, making it essential for professional electricians and technicians.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621080412

Technical Specifications

• Application: For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
• Color: Blue
• Conductor Size: 18 to 14 AWG
• Finish: Tin Coated
• Length: 0.89 inches
• Manufacturer Part Number: RB14-10
• Material: Copper
• Series: RB Series
• Specifications: 0.21 inches Diameter Maximum Insulation, 1/4 inches Clearance, Nylon Insulation
• Standards/Approvals: UL Listed, UL 94 V-2 Flammability Rated, UL File No. E9809, CSA Certified
• Stud Size: #10
• Temperature Rating: 105 degrees Celsius
• Tongue Size: 0.31 inches W x 0.03 inches THK
• Tongue Type: Ring
• Type: Insulated
• Voltage Rating: 600 VAC
