Product Description

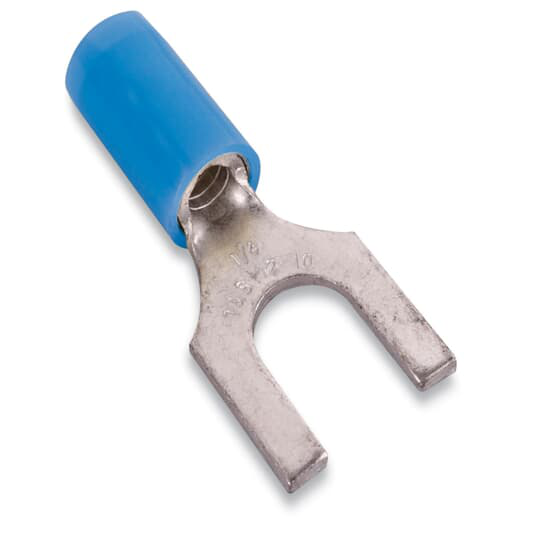

The ABB RB1153 is a nylon insulated fork terminal designed for wire sizes ranging from eighteen to fourteen AWG. This product features a #10 bolt hole and a total length of point eight seven inches. The fork terminal is equipped with an insulated nylon jacket that is color-coded blue, suitable for easy identification. The copper structure is electroplated with tin for enhanced conductivity and protection against corrosion.
- Wire Range: 18-14 AWG
- Voltage Rating: 600 VAC
- Temperature Rating: 105 degrees C
Product Highlights
This terminal is ideal for various electrical applications where reliable connections are needed. The inner bronze insulation grip sleeve prevents conductor creep and enhances the flex radius, while the serrated barrel ensures high pull-out strength.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Manufacturer Part Number: RB1153
-
Color: Blue
-
Material: Copper
-
Finish: Electroplated Tin
-
Length: 0.87 inches
-
Conductor Size: 18-14 AWG
-
Stud Size: #10
-
Insulation Type: Insulated Nylon
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 degrees C
-
Specifications: 0.162 inches Diameter Maximum Insulation, 1/4 inch Clearance
-
Standards/Approvals: CSA Certified, UL 94 V-2 Flammability Rated, UL File No. E9809
