Product Description

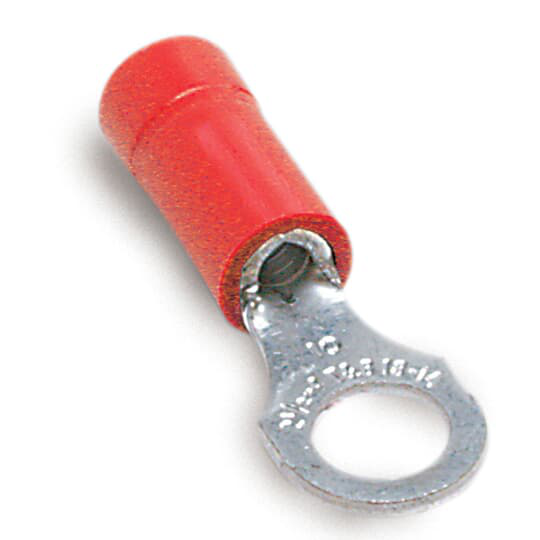

ABB RA877 is a vinyl-insulated ring terminal designed for wire ranges from twenty-two to sixteen AWG. This terminal is constructed with copper and features a brazed seam barrel, which provides a durable connection. The bolt hole is designed for a #10 stud, making it suitable for various electrical applications.
- Wire range accommodates 22-16 AWG.
- Length is 0.97 inches and width is 0.31 inches.
- Rated for a maximum voltage of 600 volts.
Product Highlights
This terminal offers self-insulation with a PVC sleeve for added protection against bending stress. Its electro-tin plated finish ensures resistance to corrosion.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Conductor Size: 22 to 16 AWG
-
Stud Size: #10
-
Material: Copper
-
Type: Insulated
-
Finish: Electro Tin Plated
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 degrees C
-
Maximum Insulation Diameter: 0.15 inches
-
Clearance: 0.27 inches
-
Standards: UL Listed, CSA Certified
