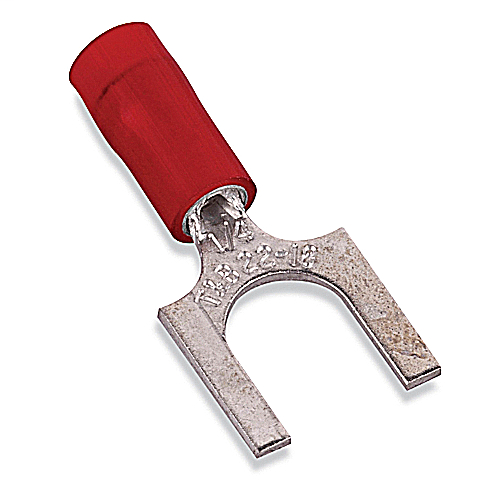

ABB RA18-8F Thomas & Betts RA18-8F Nylon-Insulated Fork Terminal - 22 to 16 AWG, #8 Bolt

Product Description

The ABB RA18-8F is a nylon-insulated fork terminal designed for wire sizes ranging from #22 to #16 AWG. This product features a length of point eight three inches and a width of point two five inches. It is suitable for use with #8 bolt holes and has a maximum insulation diameter of point one three six inches.

• Nylon insulated for effective protection.
• Compatible with various wire gauges: #22 to #16 AWG.
• Constructed from copper with electro-plated tin.

Product Highlights

This insulated terminal is ideal for secure wire connections in electrical applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: RA18-8F

Technical Specifications

• Material: Copper
• Insulation Type: Insulated Nylon
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Stud Size: #8
• Conductor Size: 22 to 16 AWG
• Finish: Electroplated Tin
• Series: RA Series
• Specifications: 0.136 in Diameter Maximum Insulation, 1/4 in Clearance
