Abb RA18-47PT insulated nylon pin terminal 300 volt .85 inch length 22-18 AWG RA147PT

Product Description

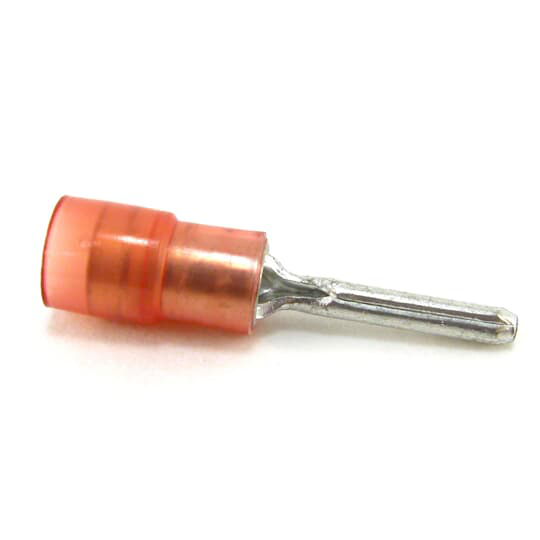

The ABB RA18-47PT is a nylon insulated pin terminal designed for electrical connections. This terminal features a .85 inch length, .39 inch pin length, and .075 inch diameter, accommodating a wire range of #22-18 AWG. Constructed from copper with an electro tin plated finish, it is rated for 300 Volt applications and has a temperature rating of 105 degrees C. It provides an effective way to terminate stranded wire into European/metric-style terminal blocks.

• Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
• CSA certified for safety and performance.
• UL listed for quality and compliance.

Product Highlights

Nylon insulation and copper construction with electro tin plated finish ensure durability, safety, and high conductivity for reliable electrical connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: RA18-47PT
• Country of Origin: United States

Technical Specifications

• GTIN: 05414363934226
• Brand: ABB
• Width: 1.13 in
• Finish: Electro Tin Plated
• Height: 2.94 Inch
• Length: 0.85 Inch
• Voltage: 300 Volt
• Material: Copper
• Standard: UL E9809
• Sub Brand: Sta-Kon®
• Thickness: .03 in
• Used With: Round Conductors
• Wire Size: 22-18 AWG
• UPC: 786210030869
• Applications: Terminate Stranded Wire into European/Metric-Style Terminal Blocks
• Terminal Type: RA
• Insulation Type: Insulated Nylon
• Flammability Class: Rated V-2 Per UL94
• Temperature Rating: 105 degrees C
• Insulation Material: Nylon
• Manufacturer Part Number: RA18-47PT
• Color: Red
• RoHS Compliance: RoHS3 Compliant
• REACH Compliance: REACH 247 Compliant
• TSCA Compliance: TSCA Section 6(h) Compliant
• ETIM Classification: EC001052 Solderless copper terminals for copper conductors
• Flange Shape: Pin shape
• Application Tools: WT2000, ERG4001
• Category: Electrical terminals
• Certifications: [{'Agency': 'CSA', 'Class': '4503', 'Certificate Number': '622302'}, {'Agency': 'CSA', 'Class': '700123', 'Certificate Number': '622701'}, {'Agency': 'UL', 'Standard': 'E9809', 'Class': 'ZMVV'}]
• Product Range: Sta-Kon RA Series
• Termination: Crimp
• SVHC: No SVHC (15-Jan-2018)
• RoHS Phthalates Compliant: Yes
• UNSPSC Code: 39120000
• Family Name: Sta-Kon and Catamount Terminal
• Number of Contacts: 1
• Series: RA Series
• Manufacturer: ABB DISTRIBUTION CONTROL
• Product Group: STA-KON AND CATAMOUNT TER
• Product Category: Pin Terminal Lug
• Pin Length: 0.39 Inch
• Pin Diameter: 0.075 Inch
