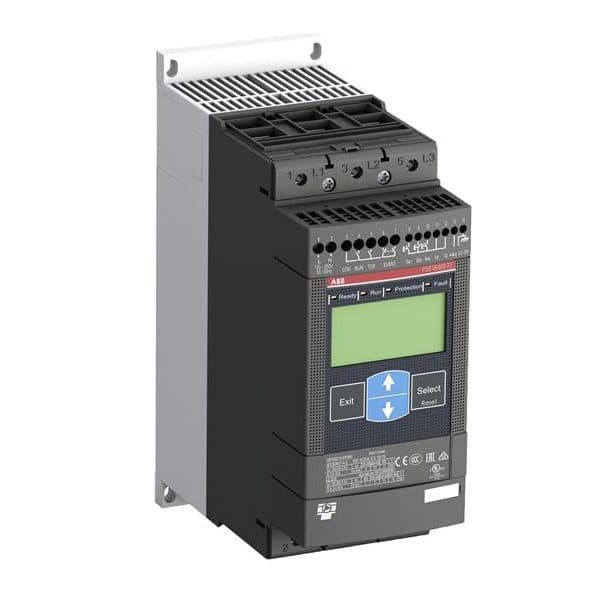

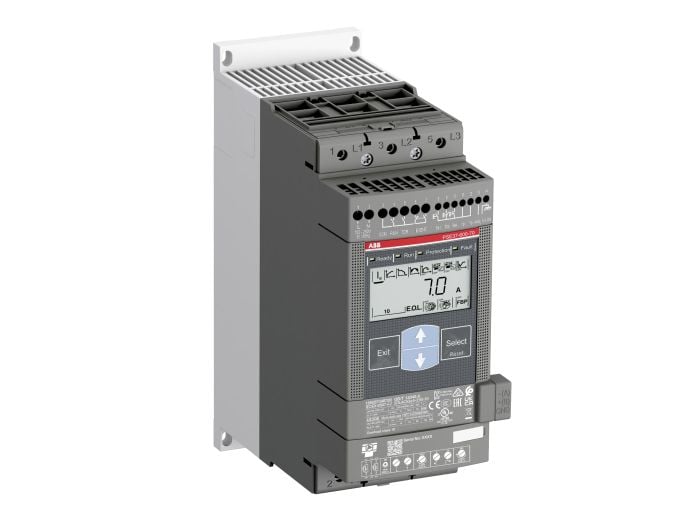

Abb PSE72-600-70 Softstarter 72 A

Product Description

The ABB PSE72-600-70 soft starter is a compact solution for managing three-phase induction motors, controlling initial current inrush for equipment longevity and electrical system stability. It features a built-in electronic overload for motor protection and torque control for pumps. The illuminated display and keypad provide information during ramping and operation.

• Wide Rated Operational Voltage 208 ~ 600 VAC
• Wide Rated Control Supply Voltage 100 ~ 250 VAC
• Coated Circuit Boards for Reliable Operation in Harsh Environment

Product Highlights

Efficient and compact, the ABB PSE soft starter integrates motor protection, control, and a user interface for streamlined design and improved system capability.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: PSE72-600-70
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: PSE72-600-70
• Manufacturer: ABB
• Product Series: PSE Series
• Family Series: ABB Soft Starters, PSE Series
• Description: IP00/Open Enclosure
• Nominal Load Voltage: 208 V, 240 V, 380 V, 480 V, 575 V
• AC Voltage: 208-600 VAC
• Current Rating: 72 A
• Operating Temperature: -13-140 °F
• Bypass: Yes
• Overload Protection: Yes
• Communication: Field Bus
• Horsepower: 50.0 HP
• Input Voltage: 400 - 480 VAC Input
• Output Voltage: 480 VAC Output
• Rated Current: 68.0 Amps
• Input Phase: Three Phase Input
• Output Phase: Three Phase Output
• Enclosure: Not Rated
• Height: 10 in
• Width: 4 in
• Depth: 7 in
• Country of Origin: China
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 1SFA897107R7000
• Unit of Measure: EA
• Overview: PSE Soft Starter
