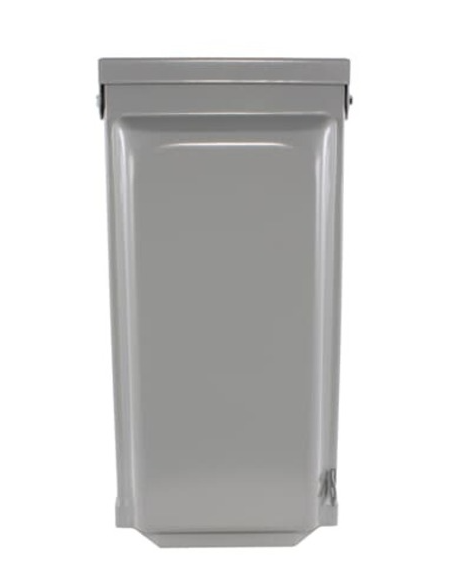

Abb pm3220c Load Center 200A 32 Circuit Mcb

Product Description

The ABB pm3220c is a 200-amp main circuit breaker load center rated for 32 circuits and designed for residential and light commercial electrical distribution. It arrives with a gray NEMA Type 1 enclosure, making it suitable for indoor, dry-location installations. The pm3220c ships plug-on neutral (PON) ready, which allows branch circuit breakers to connect the neutral conductor directly at the breaker rather than running a separate pigtail to the neutral bar. Licensed electricians install this unit as the primary panelboard for new construction or service-upgrade projects governed by NEC requirements.

The pm3220c suits residential service panels and light commercial indoor applications where a 200-amp, 32-circuit capacity covers typical load demands. The plug-on neutral design reduces installation time and supports arc-fault and ground-fault breaker types that require a direct neutral connection. The gray NEMA 1 enclosure keeps the unit clean and accessible in utility rooms, mechanical spaces, garages, and similar indoor environments where moisture and dust levels are controlled.

Key Features

• 200-amp main circuit breaker provides overcurrent protection at the service entry point
• 32 circuit spaces support a full complement of single-pole and double-pole branch breakers
• Plug-on neutral (PON) bus eliminates separate neutral pigtails for compatible breakers
• NEMA Type 1 gray enclosure rated for indoor dry-location use
• Main circuit breaker included, no separate disconnect required at the panel

Compatibility

Designed as an OEM-style load center for indoor residential and light commercial electrical service installations requiring a 200-amp main breaker and 32-circuit capacity with plug-on neutral breaker compatibility.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local amendments. De-energize the utility service and verify absence of voltage before making any connections inside the enclosure. Ensure the enclosure is mounted plumb and secured to structural framing rated to carry the panel weight. Do not exceed the rated 200-amp service capacity or install breakers not listed for plug-on neutral use in PON slots.
