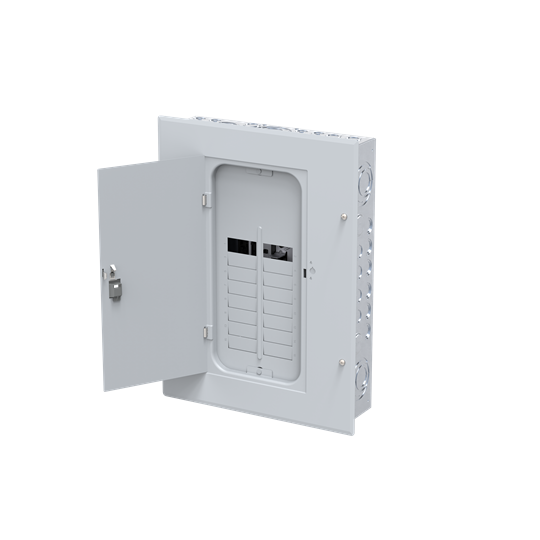

Abb PAL1612 Ld Ctr Mlo 125A 16/32 Al N1 Gr Pon Ul

Product Description

The ABB PAL1612 ReliaHome load centers are designed for fast installation and reliability. These load centers work seamlessly with residential circuit breakers. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. It is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.

• Main lugs are factory installed, convertible to main breaker
• Compatible with THQLT (tandem) and THQLQ(quad) breakers(not THQP)
• Indoor NEMA 1 125A ML 16/32 LC

Product Highlights

ReliaHome plug-on neutral load centers distribute energy safely and reliably. The integrated neutral bus enables quicker electronic circuit breaker installations while maintaining dependable circuit protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: PAL1612
• Country of Origin: UKN

Technical Specifications

• Category: Load Centers
• GO Schedule: RT
• Grouping: Single Phase - USA
• # Branch Circuit <250A: 16
• 1" Space: 16
• 1/2" Space: 0
• Amperage: 125 A
• Circuit Breaker Style: Plug-On Neutral
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: Indoor
• Factory Installed Ground Kit: No
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Interrupt Rating: 22kAIC
• Interrupting Capacity Rating: 22kAIC
• Load Center Type: P-Series (PON)
• NEMA Rating: NEMA 1
• No of Circuits: 32
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
• Main lugs: Factory installed, convertible to main breaker
• Compatible with: THQLT (tandem) and THQLQ(quad) breakers(not THQP)
• Indoor/Outdoor: Indoor
• Amperage (amps): 125
• Number of Spaces: 16
• Number of Circuits: 32
• NEMA Type: 1
• Mounting: Combination Surface/Flush
• Neutral Type: Plug-on
• Voltage: 120/240
• Amperage Rating: 125A
• Number Of Feeders: Either
• Load Regulation: 120/240V ac
• Standard: UL Listed
• Wiring Configuration: 3 Wire
• Number of Phases: 1
• Manufacturer: ABB
• Component: Load Center
