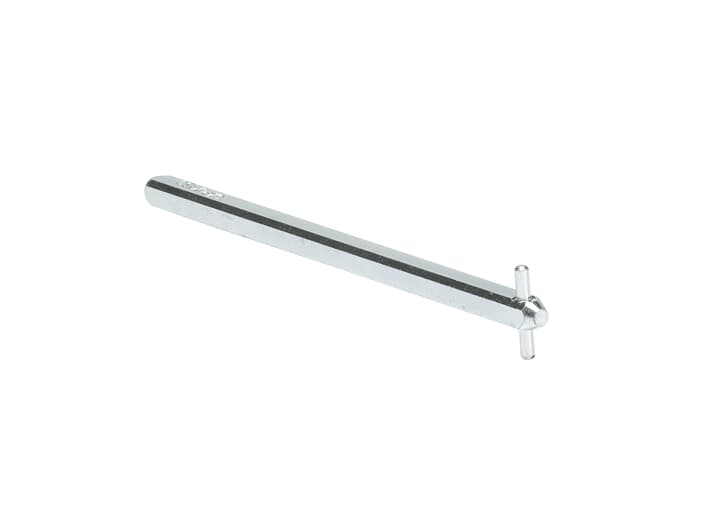

Abb OXP6X360 Pistol Handle Shaft 14.2 Inches

Product Description

The ABB OXP6X360 is a pistol handle shaft measuring 14.2 inches in length, designed as a mechanical component for pistol-style handle assemblies used in industrial electrical switching equipment. This shaft serves as the connecting or actuating member within the handle mechanism, transmitting operator input to the switching or disconnecting function of the assembly. It is a direct replacement or service part typically installed by licensed electricians and industrial maintenance technicians performing handle assembly repairs or replacements on ABB-branded equipment.

The OXP6X360 is suited for use in industrial and commercial electrical environments where ABB pistol handle switch assemblies are installed. Typical applications include panel-mounted disconnect switches and similar operator-control mechanisms found in industrial facilities, commercial buildings, and equipment rooms. This shaft is a service-level component intended for assembly maintenance rather than standalone installation.

Key Features

• 14.2-inch shaft length sized for pistol handle assembly fitment
• Designed as an OEM-style service replacement component
• Compatible with ABB pistol handle switch mechanisms
• Supports precise mechanical actuation within the handle assembly

Compatibility

Designed as an OEM-style replacement shaft for ABB pistol handle switch assemblies. No specific model numbers or system families were identified in the available product data.

Installation Notes

Installation should be performed by a qualified electrician familiar with ABB switching equipment. De-energize and lock out the circuit per NFPA 70E lockout/tagout procedures before disassembling any handle or switching mechanism. Verify shaft alignment and full mechanical engagement within the handle assembly before restoring power. Consult the equipment manufacturer documentation for assembly sequence and torque requirements specific to the host unit.

Technical Specifications

• Shaft Length: 14.2 inches
• Application: Pistol handle assembly

Standard Information

• Brand: ABB
• Manufacturer Part Number: OXP6X360
