Product Description

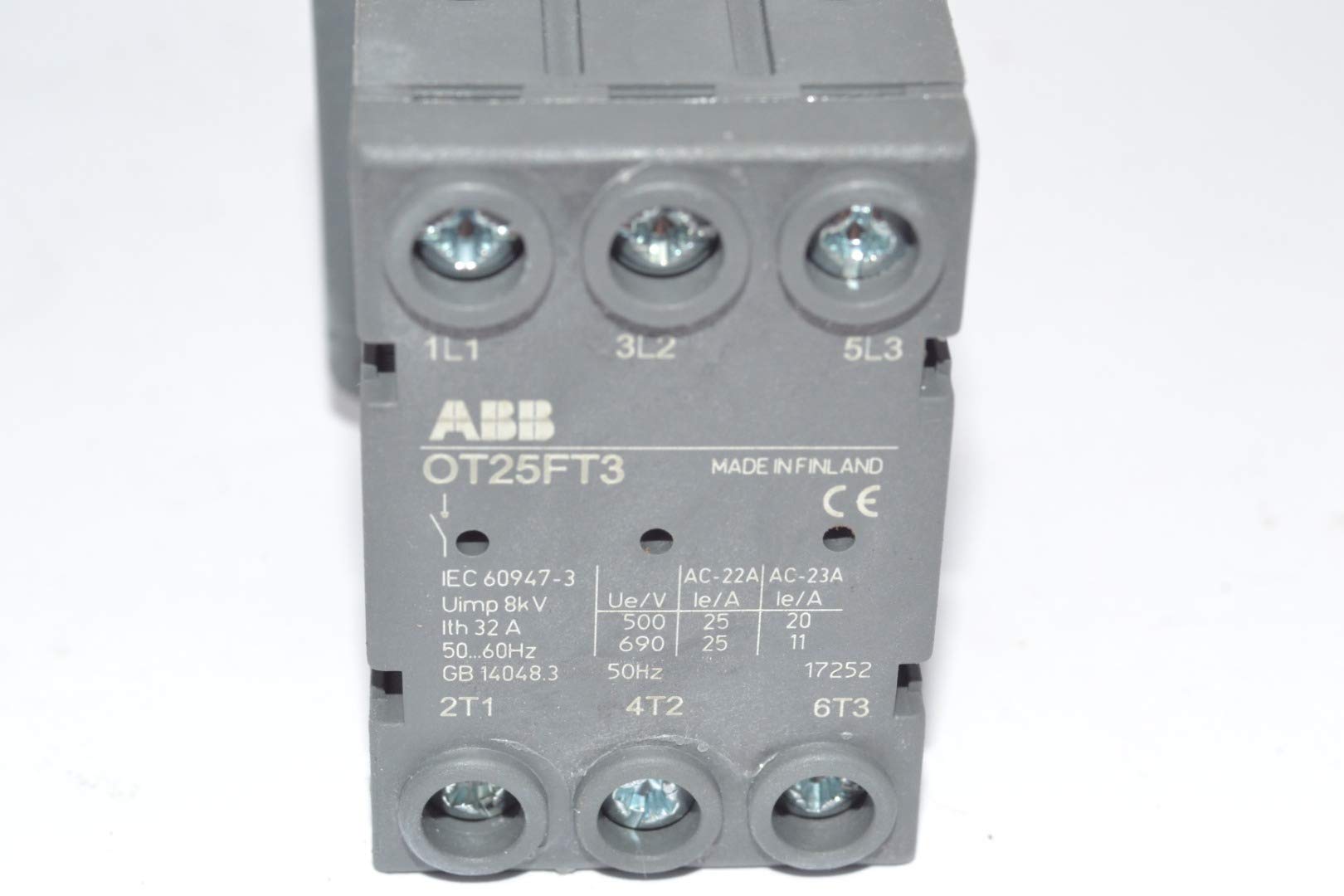

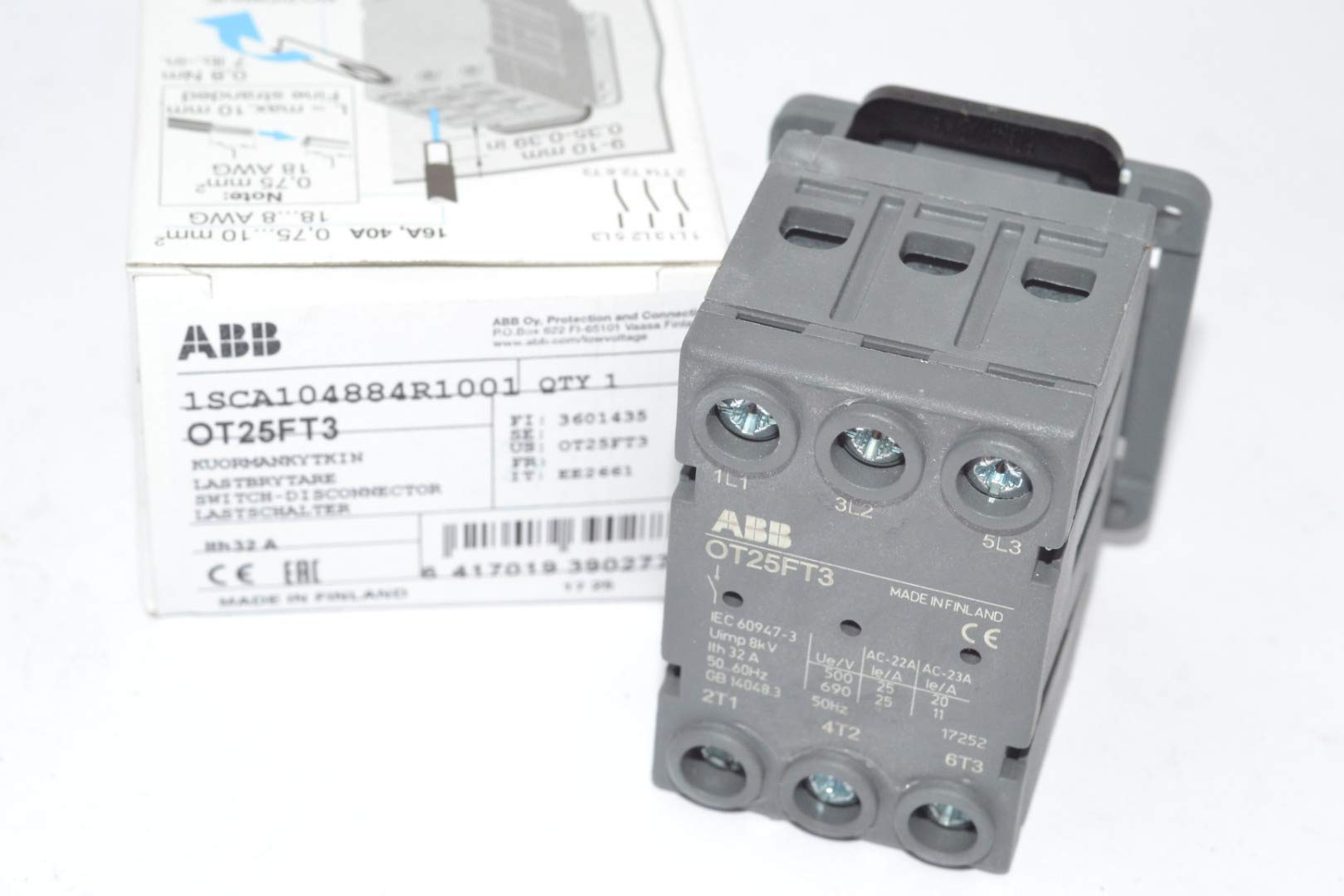

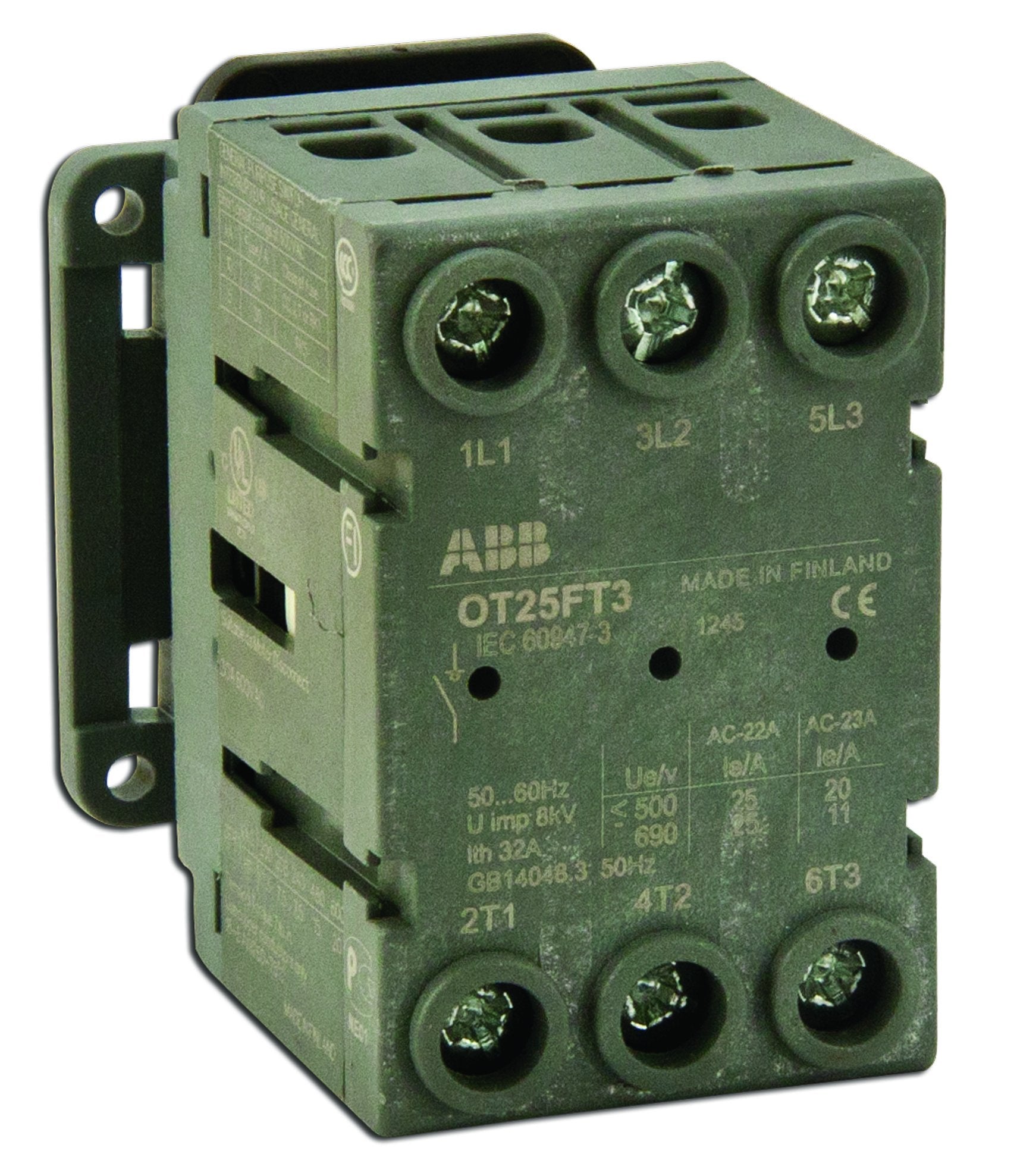

The ABB OT25FT3 is a 3-pole, door-mounted open non-fusible disconnect switch. Rated at 25 amps at 600 VAC and UL 508 approved, it is designed for industrial control panel disconnect applications. The unit features screw terminals for secure connections.
- 3 pole
- 25 amps rated at 600 VAC
- UL 508
Product Highlights
The ABB OT25FT3 is ideal for industrial motor control and construction safety switches.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: OT25FT3
-
Country of Origin: China
Technical Specifications
-
Brand: ABB
-
Standard: CSA C22.2 No. 14,IEC 60947-3,UL 508
-
Applications: Industrial control panel disconnects
-
Mounting Type: Door
-
Terminal Type: Screw Terminals
-
Number of Poles: 3
-
Model / MPN: OT25FT3
-
MPN: OT25FT3
-
Manufacturer: ABB
-
Voltage Rating: 600 VAC
-
Power Rating: 20 hp
-
Amperage Rating: 25 A
-
Temperature Rating: 40 deg C
-
Includes: Terminal Clamps (IP20)
-
Standard/Approvals: CSA 22.2 No 14, UL 508
-
Application: For all switching applications from industrial motor control to construction safety switches
-
Poles: 3
-
Amp: 25
-
Current Rating: 25 Amps
-
Connector Type: Screw
-
Number Of Contacts: 3
-
Voltage: 600 Volts (AC)
-
Specification Met: UL
-
Number of Positions: 3
-
Manufacturer Part Number: OT25FT3
-
Product Series: SWITCHLINE
-
Family Series: ABB Disconnect Switches, SWITCHLINE Series
-
Description: 3-pole, front operated, door mounted switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included
-
AC Voltage: 600 VAC
-
Operator Type: Thru-Door
-
Fusible: No
-
Contact Voltage AC Max: 750V
-
No. of Poles: 3 Pole
-
Contact Current AC Max: 25A
-
IP / NEMA Rating: IP20
-
Switch Disconnector Terminal Style: Screw
-
Switch Disconnector Mountng Type: Door Mount
-
Approvals / Standards: IEC 60947-3, UL 508, CSA
-
Product Range: OT Series
-
Model: OT25FT3
-
Country of Origin: China
