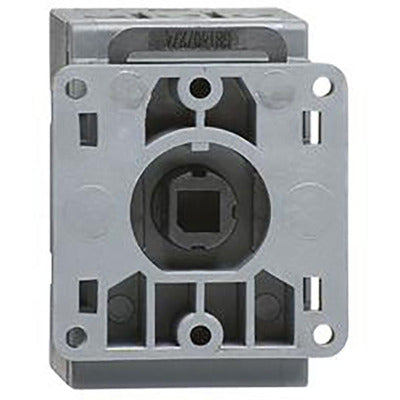

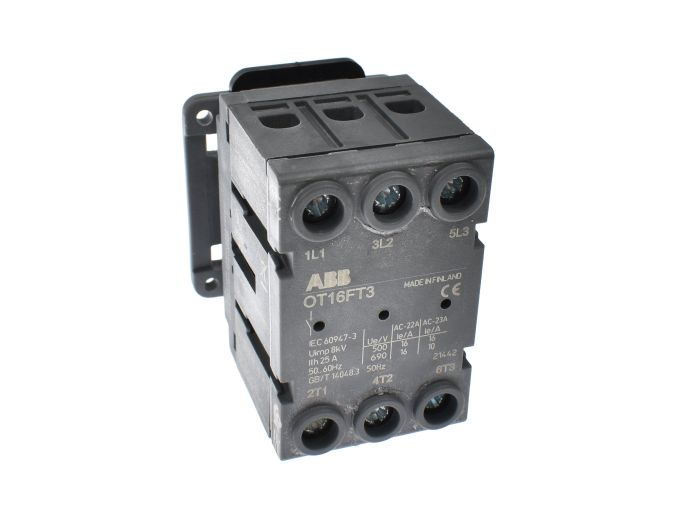

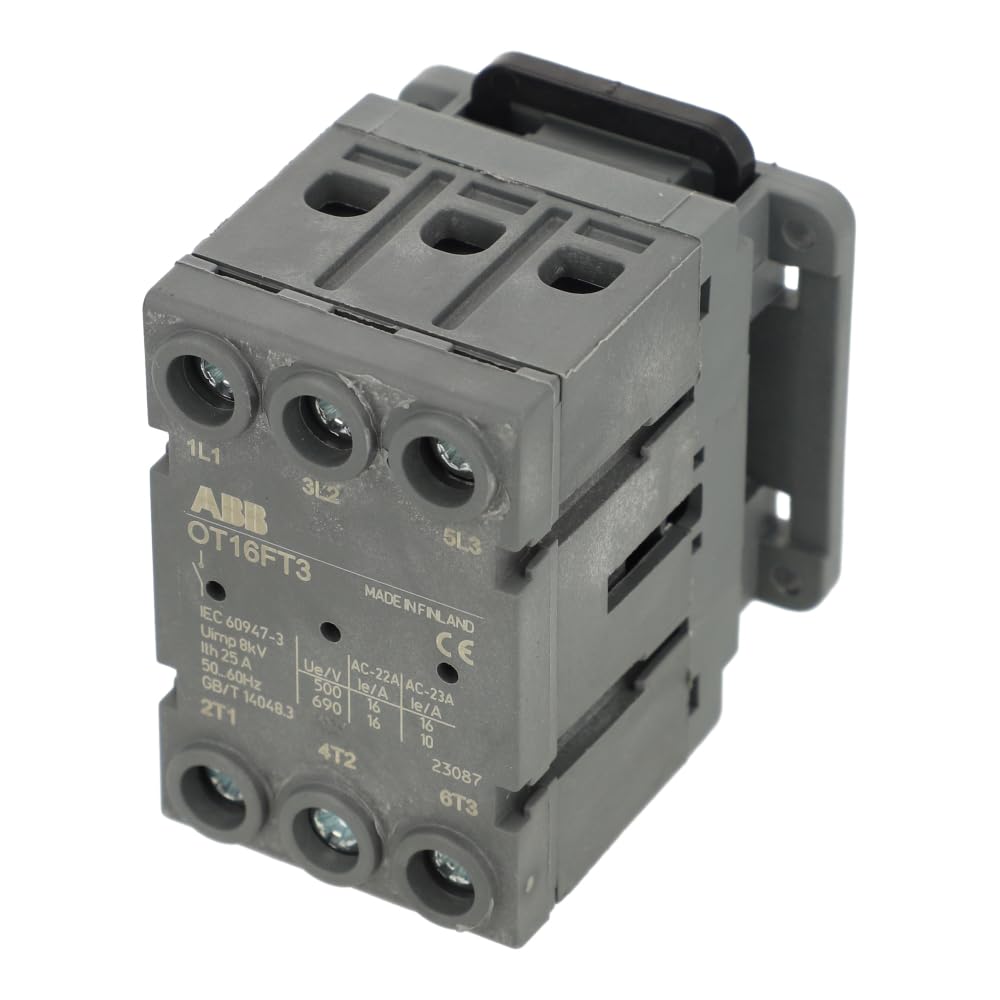

Abb OT16FT3 Disconnect Switch 20 Amps Replacement OT16FT3

Product Description

The ABB OT16FT3 is a 3-pole, door-mounted, open non-fusible disconnect switch rated at 20 amps and 600V AC, and is UL 508 compliant. The SwitchLine series offers flexibility, safety, and high performance in a compact size, suitable for industrial motor control and construction safety switches.

• Rated current 20A (UL508 / CSA)
• Rated voltage 750Vac
• Protected screw-clamp connections

Product Highlights

Suitable for industrial motor control and construction safety switches.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: OT16FT3

Technical Specifications

• Type: DISCONNECT
• UNSPSC Code: 39122233
• MPN: OT16FT3
• Manufacturer Part Number: OT16FT3
• Manufacturer: ABB
• Product Series: SWITCHLINE
• Family Series: ABB Disconnect Switches, SWITCHLINE Series
• Description: 3-pole, front operated, door mounted switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included
• Poles: 3
• Current Rating: 16 A
• AC Voltage: 600 VAC
• Operator Type: Thru-Door
• Mounting: Door
• Fusible: No
• No. of Poles: 3 Pole
• Contact Voltage AC Max: 750V
• Contact Current AC Max: 16A
• IP / NEMA Rating: IP20
• Switch Disconnector Terminal Style: Screw
• Switch Disconnector Mountng Type: Door Mount
• Approvals / Standards: IEC 60947-3, UL, CSA
• Product Range: OT Series
• Primary brand: ABB
• Secondary brand: Stromberg
• Main function: Switch-disconnector
• Product series / family name: OT
• Sub-range name: OT switch-disconnectors
• Functions: Door-mounted non-fusible manual switch-disconnector / load-break switch (LBS)
• Design: UL/CSA compliant
• Rated current: 20A (UL508 / CSA)
• Frame current rating: 20 AF
• Rated power (HP): 5HP (240Vac; 3-phase) 10HP (480Vac) 10HP (600Vac)
• Rated voltage (AC): 750Vac
• Rated impulse voltage (Uimp): 8 kV
• Rated insulation voltage (Ui): 750 V
• Connection type: Protected screw-clamp connections
• Short circuit withstand current (Icw): 0.5kA (1s)
• Mounting mode: Door mounting
• Operating mode: Rotary handle (sold separately)
• Order code / Manufacturer SKU: OT16FT3
• Manufacturer product status: Commercialized
• Equivalent to: OT16FT3
• EAN code: 6417019389820
• Compliant with standard(s): IEC 60947-3 UL 508 CSA C22.2 No.14
• Degree of pollution: 3
