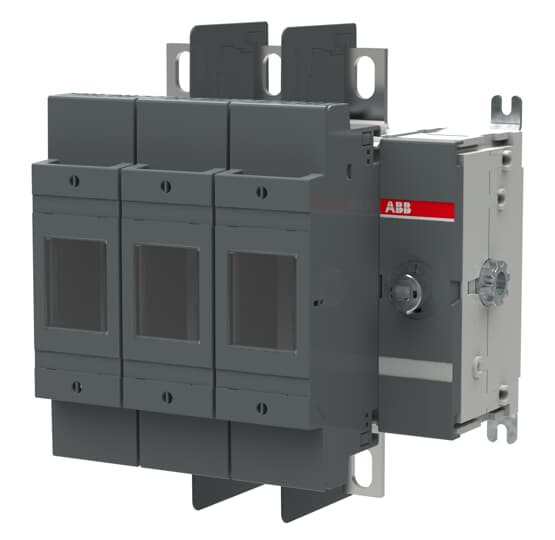

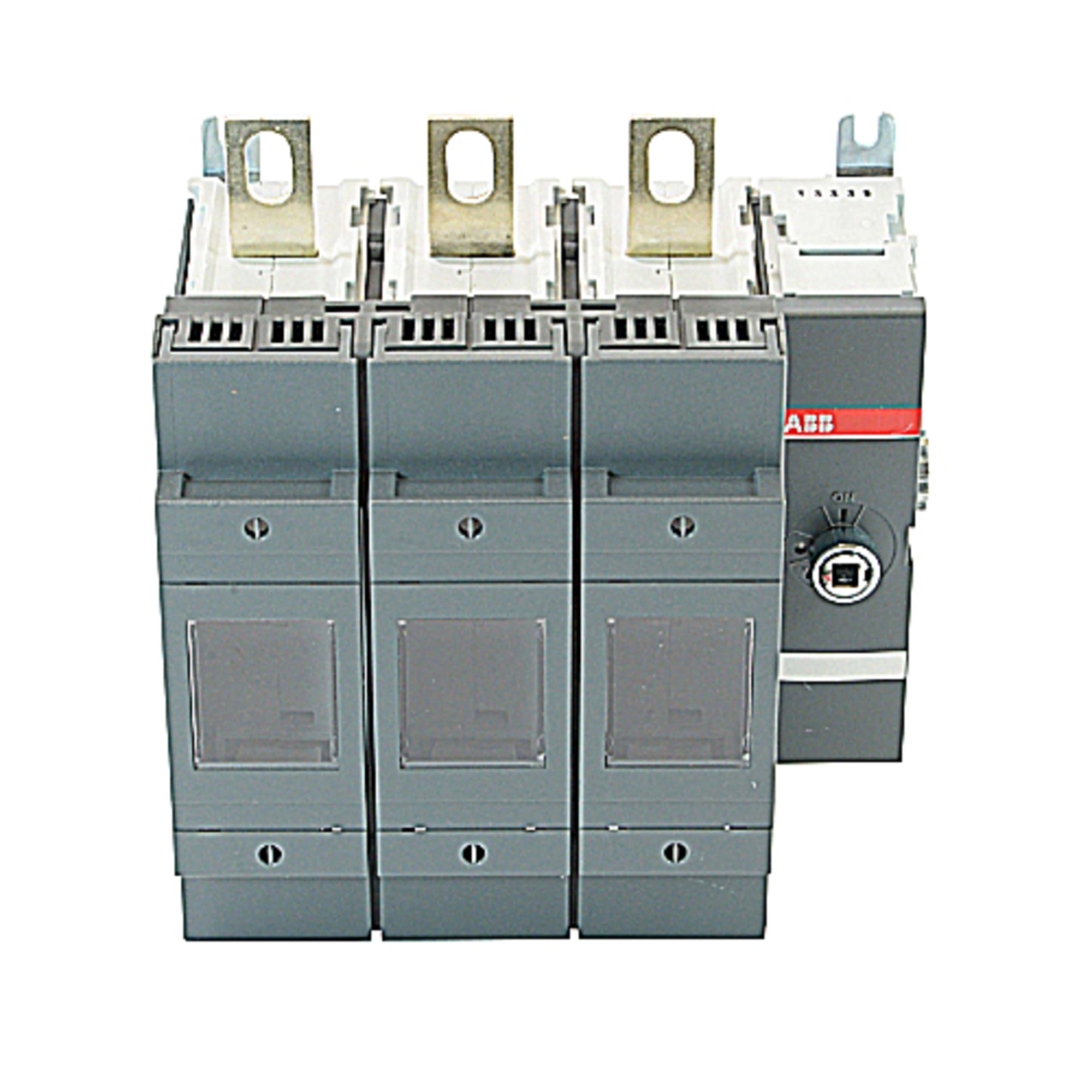

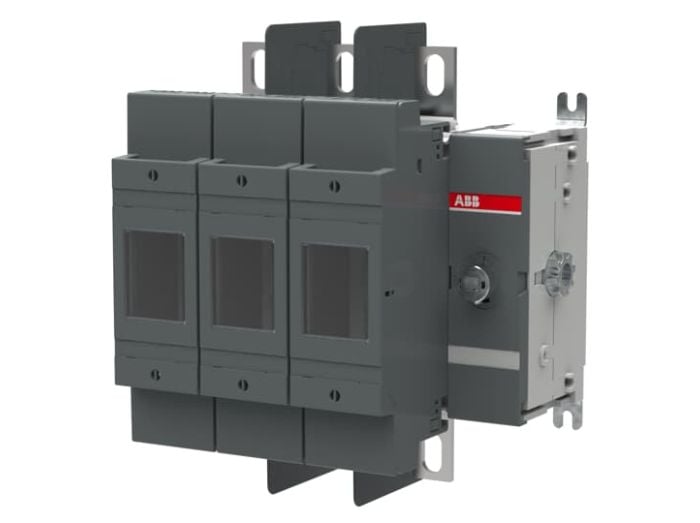

Abb OS200J30 Disconnect Switch 200A 150 hp 3 Poles

Product Description

The ABB OS200J30 is a 200A disconnect switch rated at 600 VAC. This open fusible disconnect switch is designed for use with J fuse types and includes a terminal bolt kit as standard. It is suitable for various applications, including mechanical equipment, power distribution, HVAC, and motor control centers.

• 3 poles
• Rated at 600 VAC
• Includes terminal bolt kit as standard

Product Highlights

This ABB disconnect switch offers high performance and reliability for diverse applications. It features a compact design and is built and tested for optimal performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: OS200J30
• Country of Origin: FI

Technical Specifications

• Type: Disconnect switch
• Brand: ABB
• Standard: UL98IEC 60947-3
• Mounting Type: Base Mounting
• Terminal Type: Lug Terminals
• Number of Poles: 3 Pole
• Voltage Rating: 600 VAC
• Power Rating: 150 hp
• Amperage Rating: 200 A
• Short Circuit Rating: 200 kA
• Temperature Rating: 40 deg C
• Standard/Approvals: CSA C22.2 No 4, UL 98
• Application: Motor Control Centers, Panelboards and Switchboards
• Alternate Mfr Part Number: 1SCA022758R8610
• Approvals: UL98 / CSA C22.2 NO.4 / IEC 60947-3
• Current Rating: 200 A
• Fuse Type: J Fuse
• Manufacturer Part Number: OS200J30
• Maximum Current: 200 A
• Mounting: Panel
• Primary Type: Disconnect
• Series: OS Series
• AC Voltage: 600 VAC
• Operator Type: Thru-Door
• Fusible: Yes
• Class: J
• Frequency Rating: 50/60 Hz
• Horsepower: 150 hp
• Short Circuit Current Rating (kA): 200 kA
