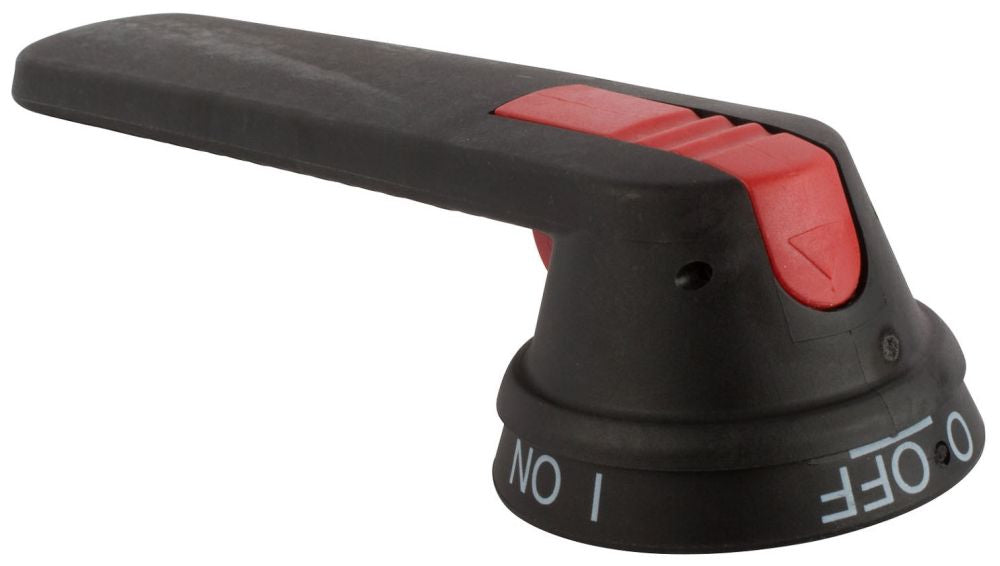

Abb OHB175L12 Pistol Handle 175mm Black

Product Description

The ABB OHB175L12 is a pistol-style handle accessory designed for use with ABB rotary disconnect switches. This handle provides a secure, ergonomic grip point for operating rotary isolators in panel and switchgear applications. At 175mm in length and finished in black, it is sized for standard rotary disconnect operator shafts where a pistol grip configuration is required. Electricians and panel builders install this accessory during switchgear assembly or as a replacement for worn or damaged operator handles on existing disconnect installations.

This handle is suited for commercial and industrial electrical panel applications where rotary disconnect switches are used for load isolation. It is commonly installed in motor control centers, distribution panels, and machinery enclosures. The pistol grip profile provides improved leverage when operating the disconnect under load or in tight enclosure layouts where a standard direct-mount knob is impractical.

Key Features

• Pistol-style grip for improved operator leverage on rotary disconnect switches
• 175mm handle length accommodates standard shaft extensions
• Black finish for consistent panel aesthetics
• Designed as a rotary disconnect operator accessory for panel and switchgear use
• Compact form factor suitable for installation in tight enclosure layouts

Compatibility

Designed as an OEM-style accessory for ABB rotary disconnect switch operators requiring a pistol handle configuration. Verify shaft size and operator series compatibility before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local codes. De-energize and lock out the circuit before servicing or replacing any disconnect operator handle. Confirm the handle shaft interface matches the rotary disconnect operator before final assembly. Do not force the handle onto the shaft, as this may damage the operator mechanism.

Technical Specifications

• Handle Length: 175mm
• Color: Black
• Handle Style: Pistol Grip
• Weight: 0.43 pounds
• UPC: 41701918701

Standard Information

• Brand: ABB
• Manufacturer Part Number: OHB175L12
