Product Description

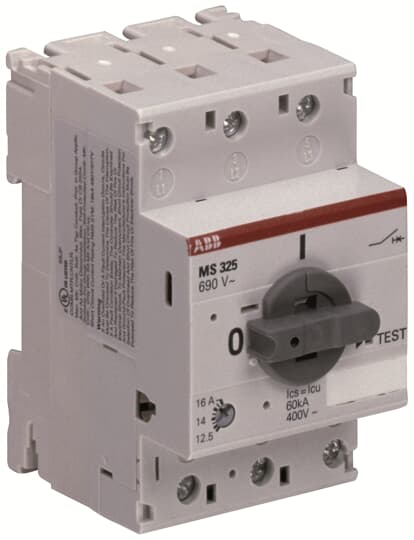

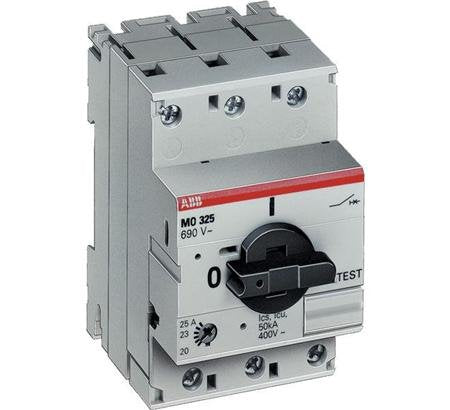

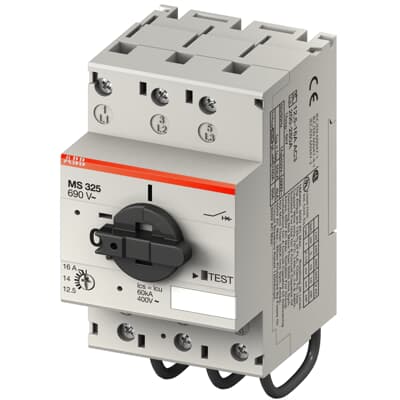

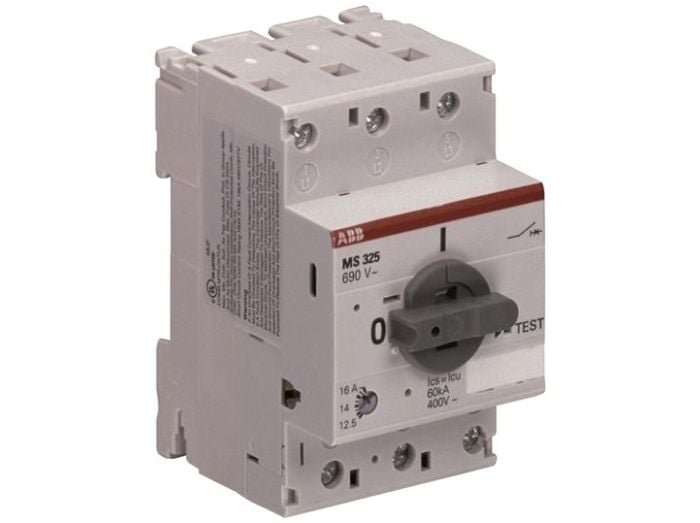

The ABB MS325-20 is a 3-phase starter with a rated current of 16-20 A and trip class 10 A. It features a build-in disconnect function, temperature compensation, trip-free mechanism, and a rotary handle with a clear switch position indication. It is designed for protecting the load and the installation against short circuit and overload.
- Build-in disconnect function
- Temperature compensation
- Trip-free mechanism
- Rotary handle with a clear switch position indication
Product Highlights
Provides reliable motor protection and control in industrial applications with manual ON/OFF operation and trip indication.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: MS325-20
Technical Specifications
-
Rating: IP20
-
Type: MOTOR STARTERS/PROTECTION
-
UNSPSC Code: 39121521
-
Voltage Rating: 690 VAC
-
Amperage Rating: 20 A
-
Wattage: 9 kW At 400 V
-
Setting: 16 - 20 A
-
Number Of Poles: 3
-
Phase: 3 PH
-
Enclosure: IP20
-
Mounting: DIN Rail
-
DIN Rail: TH35-15 (35 mm Length X 15 mm Width), TH35-7.5 (35 mm Length X 7.idth)
-
Connection: Screw Terminal
-
Operating Cycles: 100000 Cycles (Electrical/Mechanical Durability)
-
Operating Temperature: -25 to +70 deg C
-
Environmental Conditions: Storage Temperature: -40 To 70 deg C
-
Actuator: Rotary Handle
-
Recommended Screw Dri: Pozidriv 2 / M3.5
-
Pollution Degree: 3
-
Wire Strip Length: 9 mm
-
Connecting Capacity: Stranded, Flexible: (1 Or 2) 14 - 8 AWG
-
Tightening Torque: 14 in-lb
-
Storage Temperature: -50 To +80 deg C
-
Breaking Capacity: Rated Service Short-Circuit/Rated UltimShort-Circuit: 100 kA At 230 V AC, 55 kA At 400 V AC, 35 kA At 440 V AC, 22 kA At 500 V AC, 3.5 kA At 690 V AC
-
Rated Instantaneous Short-circuit Current Setting (ii): 300 A
-
Frequency Rating: 50/60 Hz
-
Insulation Voltage: 690 V
-
Power Loss: 1 - 1.6 W P Pole
-
Rated Impulse Withstand Voltage: 6 kV
-
Series: MS325
-
Power Rating: 15 hp at 600 VAC
-
Number of Phases: 3
-
Standard/Approvals: IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 508, CSA 22.2 No 14
-
Manufacturer: ABB
-
Product Type: CIRCUIT_BREAKER
-
Product Series: MS
-
Family Series: ABB Manual Motor Protectors, MS Series
-
Description: Manual Motor Protector, 14-20A 1SAM150000R1013
-
Current Rating: 25 A
-
FLA Adjustment Range: 16-20
-
Poles: 3
-
Trip Class: Class 10
-
Protection Rating: IP20
-
Approvals: CCC, CE, CSA, cUL, GL, UL
-
Rated Current: 20A
-
Operating Voltage: 600V AC
-
Short-Circuit Breaking Capacity: 50kA
-
Protection Type: Thermal and Electromagnetic
-
Phase Loss Sensitivity: Yes
-
Disconnect Function: Yes
-
Manufacturer Part Number: MS325-20
-
UPC Code: 4013614194382
