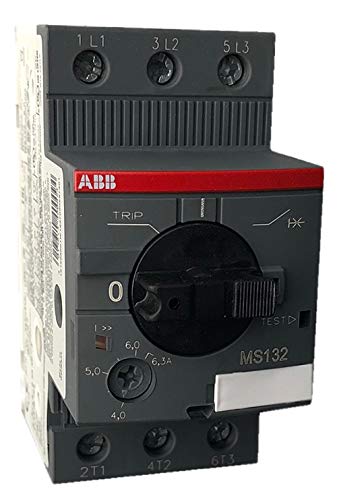

ABB MS132-6.3 Manual Motor Protector 6.3A 3 Pole

Product Description

The ABB MS132-6.3 is a manual motor protector designed for overload and short-circuit protection in motors. This device can handle a maximum current of six point three amps and is suitable for use in various industrial applications. It features a rotary knob for easy operation and clear switch position indication.

• Compact design for easy installation
• Lockable handle to prevent unauthorized changes
• Temperature compensation for reliable performance

Product Highlights

The MS132-6.3 incorporates a trip-free mechanism that allows for continuous operation even during overload conditions, and it is designed for manual switching on/off of motors, enhancing safety and efficiency in industrial settings.

Product Information

Standard Information

• Manufacturer: ABB
• MPN: MS132-6.3

Technical Specifications

• Voltage Rating: 600 Volts
• Amperage Rating: 6.3 Amps
• Trip Class: Class 10
• Contact Type: Normally Open
• Number of Poles: 3
• Operating Temperature Range: -25 to 60 degrees Celsius
• Dimensions: 3.66 x 3.66 x 1.93 inches
• Weight: 0.6 Pounds
