Product Description

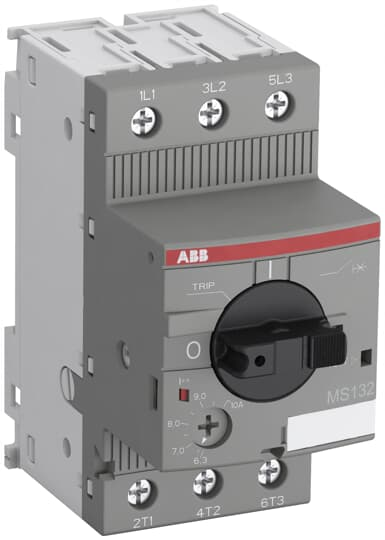

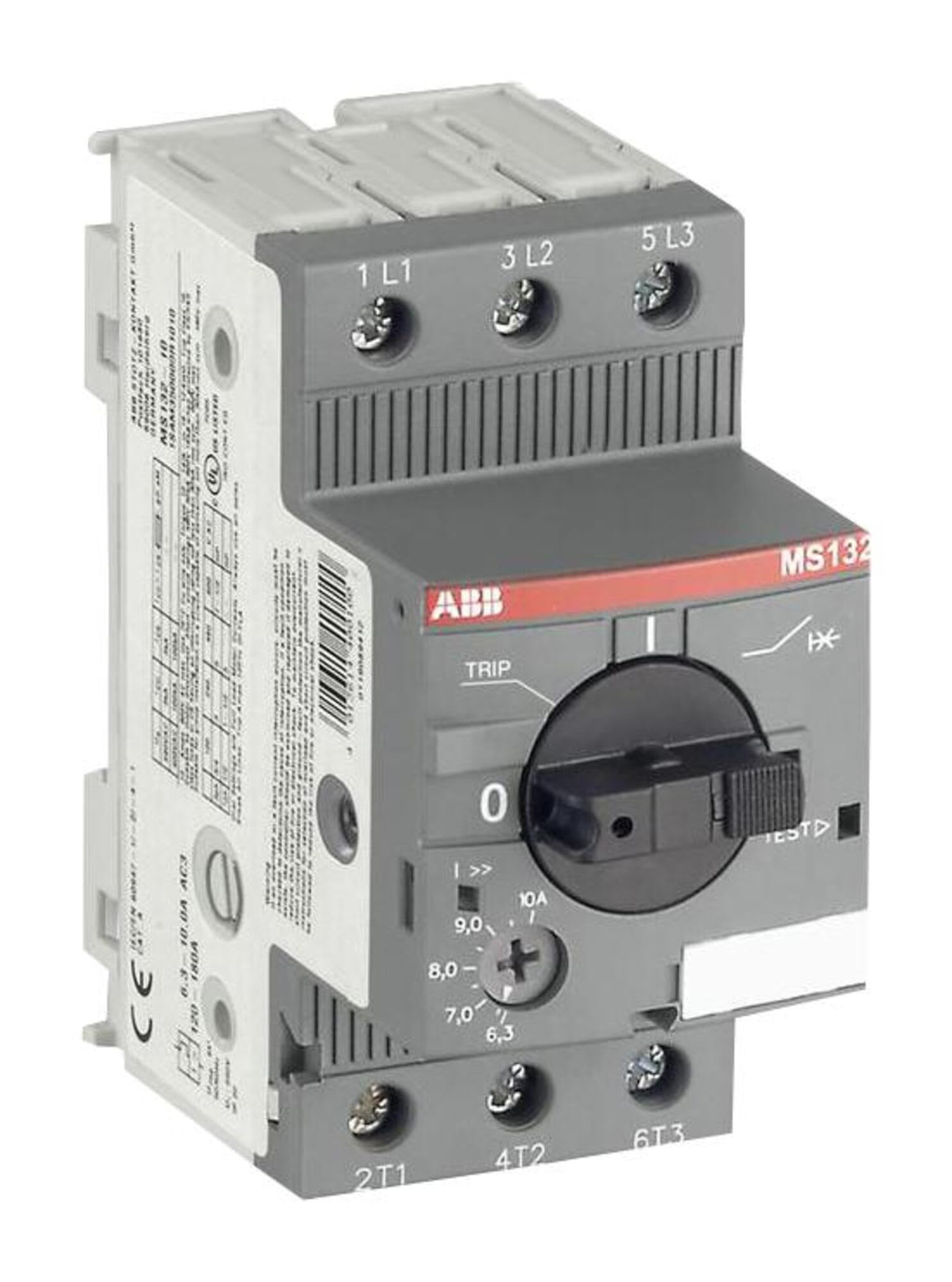

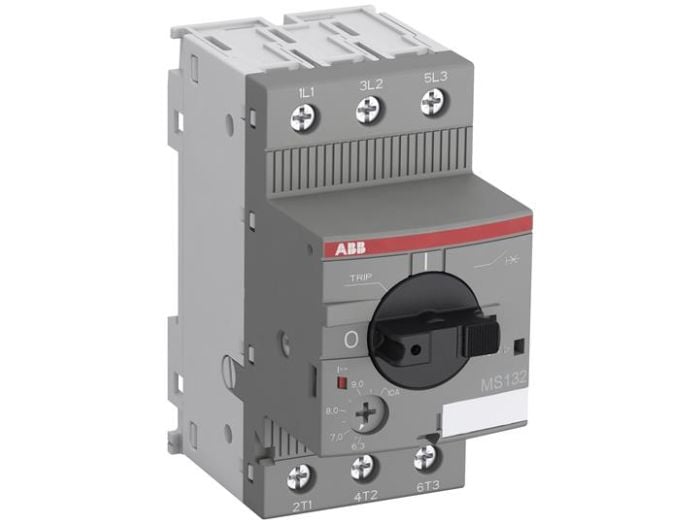

The ABB MS132-4.0 manual motor starter is a compact 45 mm width device with a rated operational current of 4.00 A. It features a build-in disconnect function, temperature compensation, and a trip-free mechanism. Suitable for three- and single-phase applications. It is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short circuits, overload and phase failures.
- Overload protection trip class 10
- Phase loss sensitivity
- Disconnect function
Product Highlights
The MS132-4.0 manual motor starter has a clear switch position indication and a lockable handle to protect against unauthorized changes.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: MS132-4.0
-
Country of Origin: Denmark
Technical Specifications
-
UNSPSC Code: 39121521
-
GTiN: 04013614400087
-
Type: Motor starter controls
-
Brand: ABB
-
Voltage: 690/250 Volt
-
Amperage: 4 Amp
-
Trip Class: Class 10
-
Applications: For Used to Manually Switch On and Off Motors and to Protect Them Reliably and Without the Need For a Fuse From Short-circuits, Overload and Phase Failures
-
Mounting Type: DIN Rail
-
Conductor Size: 1/2 x 1 - 4 mm (Solid), 1/2 x 1 - 4 mm (Stranded), 1/2 x 0.75 - 2.5 mm (Flexible With Ferrule), 1/2 x 0.75 - 2.5 mm (Flexible With Ferrule Insulated), 1/2 x 0.75 - 2.5 mm (Flexible Without Ferrule)
-
Control Voltage: 690 VAC, 250 VDC
-
Number of Poles: 3 Pole
-
Temperature Rating: -25 to 60 degrees C
-
Environmental Conditions: -50 to 80 C Storage Temperature
-
MPN: MS132-4.0
-
Product Type: MOTOR_STARTER
-
Manufacturer: ABB Group
-
IGCC: 4727
-
Standard: RoHs; CSA; cUL; CE; GOST
-
Application: Mainly used for controlling 3-phase motors and generally for controlling power c
-
Family group: MOTOR CONTROL
-
Special Features: Terminal type: Screw terminals
-
Series: MS132 Series
-
Interrupt Rating: 100 kA@400VAC
-
Voltage Rating: 690 V
-
Power Rating: 1.5 kW
-
Alternate Mfr Part Number: 1SAM350000R1008
-
Standards: ABS, ATEX, BV, CCC, cULus, DNV-GL, E137861, E345003, GOST or EAC, KC, LR, RINA, RMRS
-
Current Rating: 2.5 to 4 A
-
Enclosure Type: Open
-
Description: Manual Motor Protector, 2.5-4A, 1SAM350000R1008
-
FLA Adjustment Range: 2.5-4
-
Phase: 1, 3
-
Poles: 3
-
Protection Rating: IP20
-
Approvals: CCC, CE, CSA, cUL, EAC, GL, UL
-
Setting: 2.5 to 4 A
-
UNSPSC: 39121521
-
Amperage Rating: 2.5 to 4 A
