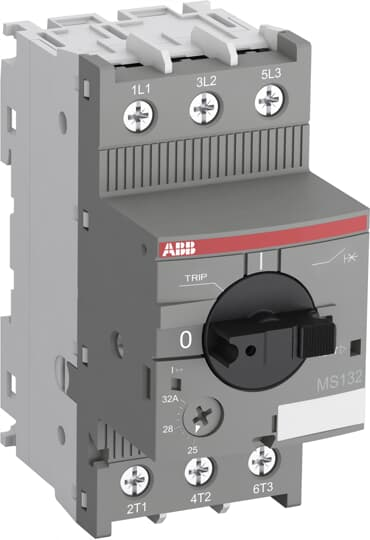

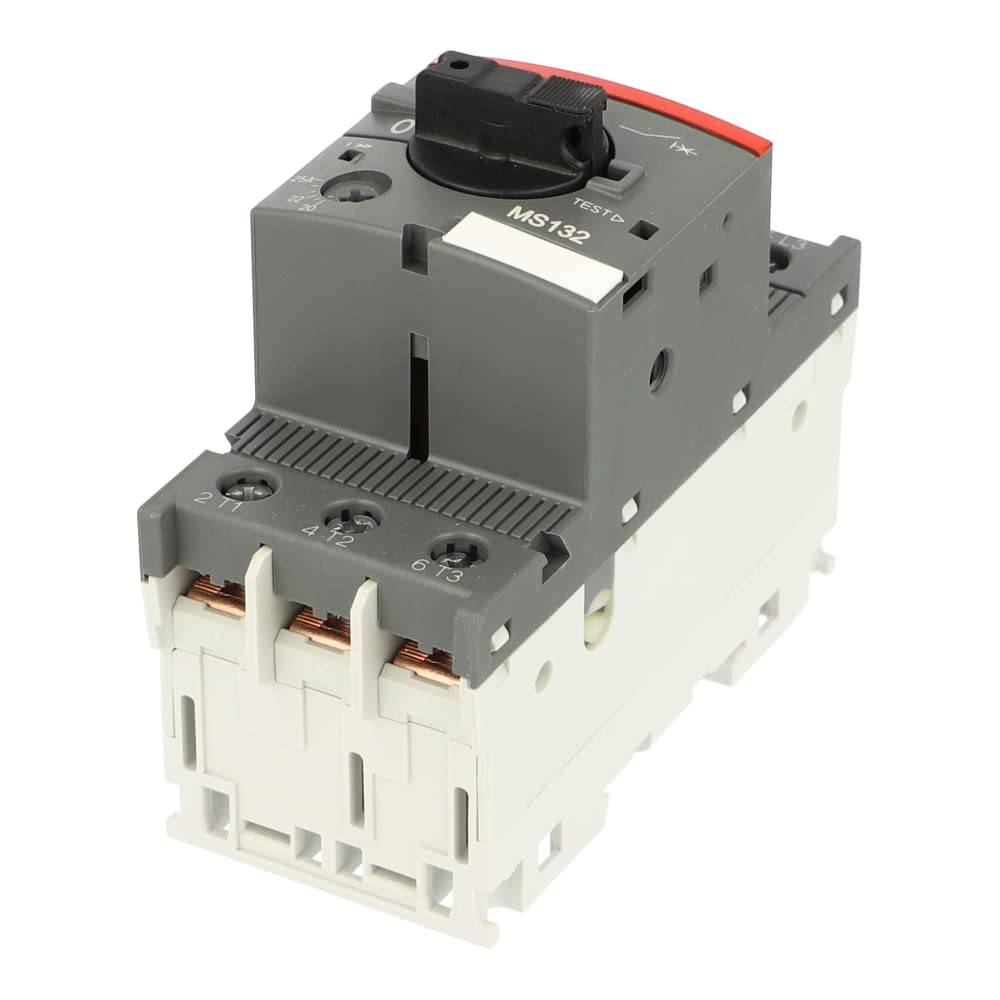

ABB MS132-2.5 Manual Motor Protector 20-25A

Product Description

The ABB MS132-2.5 Manual Motor Protector is a reliable device designed to protect motors from electrical faults and overloads. This motor protector operates within a 20-25 amp range, ensuring the safety and longevity of your industrial equipment. Its robust design suits a variety of industrial applications.

• Operates within a 20-25 amp range
• Compatible with various industrial applications
• Ensures motor safety and longevity

Product Highlights

The ABB MS132-2.5 Manual Motor Protector features a 3-pole configuration and a manual reset mechanism. It's intended for use in single motor applications, group motor installations, tap conductor protection, and motor controllers.

Product Information

Standard Information

• Brand: ABB
• Product UPC: 80432553061

Technical Specifications

• Amperage: 20-25 Amp
• Trip Class: Class 10
• Control Voltage: 690 VAC, 250 VDC
• Number of Poles: 3 Pole
• Mounting Type: DIN Rail
• Terminal Type: Screw Terminals
• Conductor Size: Various sizes for solid, stranded, and flexible conductors
• Temperature Rating: -25 to 60 degrees C
• Environmental Conditions: -50 to 80 degrees C storage temperature
• Applications: Motor disconnect, group installations, tap conductor protection, combination motor controllers
