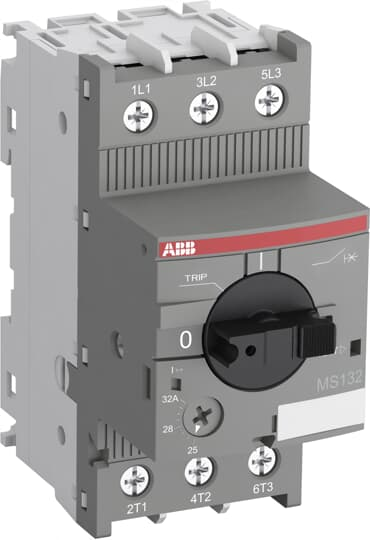

ABB MS132-12 3P MMP 8.0-12A Range Manual Motor Starter

Product Description

The ABB MS132-12 is a manual motor starter, specifically designed to provide reliable control and protection for industrial motors. It supports a current rating range of 8.0-12.0 amps and features a 3-pole configuration. This manual motor protector is UL rated and conforms to EN and IEC standards, making it suitable for a variety of industrial applications.

• Current rating: 8.0-12.0 amps
• 3-pole configuration
• UL rated and IEC compliant

Product Highlights

Manual motor starters like the ABB MS132-12 offer reliable and efficient motor control, ensuring protection against overloads, short circuits, and phase failures. They are easy to install and maintain, making them ideal for many industrial settings.

Product Information

Standard Information

• Brand: ABB
• MPN: MS132-12

Technical Specifications

• Voltage: 690 VAC / 250 VDC
• Amperage: 8.0-12.0 amps
• Number of Poles: 3
• Trip Class: Class 10
• Mounting Type: DIN Rail
• Terminal Type: Screw Terminals
• Temperature Rating: -25 to 60 degrees Celsius
• Environmental Conditions: -50 to 80 degrees Celsius (Storage)
• Conductor Size: 1/2 x 1 - 2.5 mm (Solid), 1/2 x 1 - 6 mm (Stranded), 1/2 x 0.75 - 6 mm (Flexible)
