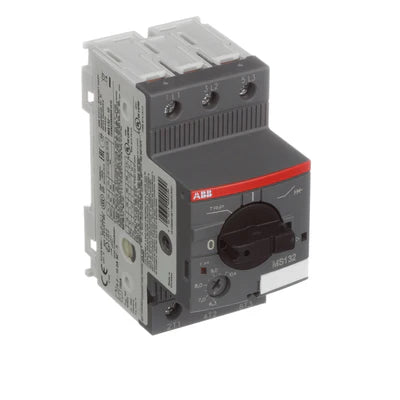

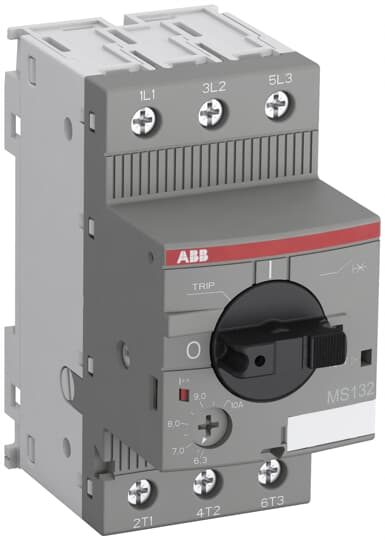

ABB MS132-10 3 Pole Manual Motor Protector 6.3-10.0A Range

Product Description

The ABB MS132-10 is a three-pole manual motor protector designed for motor control tasks in industrial applications. This device handles current ranges from six point three to ten amps and is UL rated for safety and reliability. The MS132-10 is intended for use as a motor disconnect in both single and group motor installations.

• Current range: Six point three to ten amps
• Three-pole design for enhanced control
• UL rated for safety and compliance

Product Highlights

The ABB manual motor starter provides direct control for electric motor operations, ensuring reliability and performance in various applications.

Product Information

Standard Information

• Brand: ABB
• MPN: MS132-10

Technical Specifications

• Number of Poles: 3
• Amperage Range: 6.3 to 10 A
• Voltage Rating: 690 VAC, 250 VDC
• Temperature Rating: -25 to 60 degrees C
• Mounting Type: DIN Rail
• Control Voltage: 690 VAC, 250 VDC
• Conductor Size: 1/2 x 1 - 4 mm (Solid), 1/2 x 0.75 - 2.5 mm (Flexible)
• Environmental Conditions: -50 to 80 C Storage Temperature
• Trip Class: Class 10
