Abb MP1-30B 22mm Modular Pushbutton Momentary Flush Chrome Bezel (22 mm)

Product Description

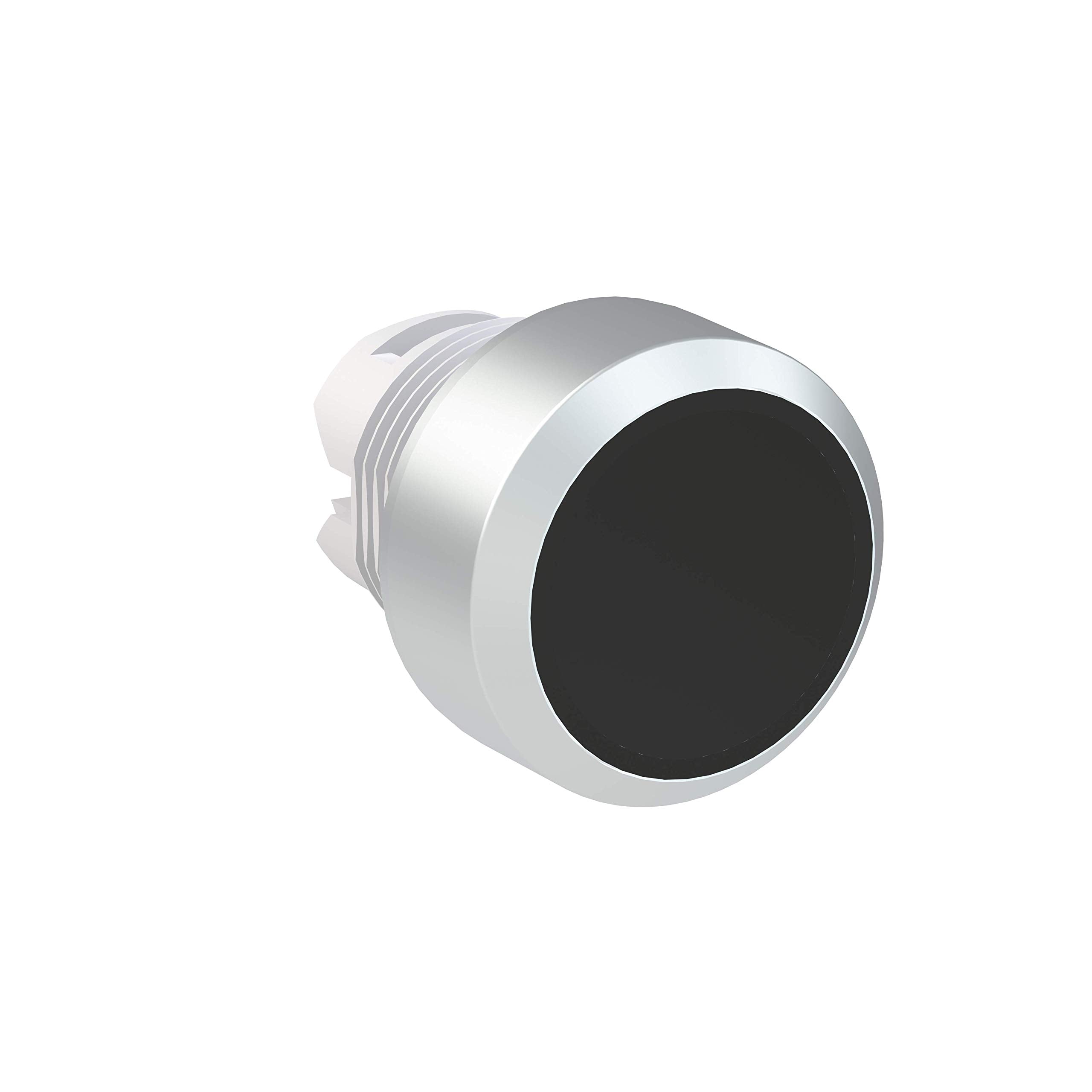

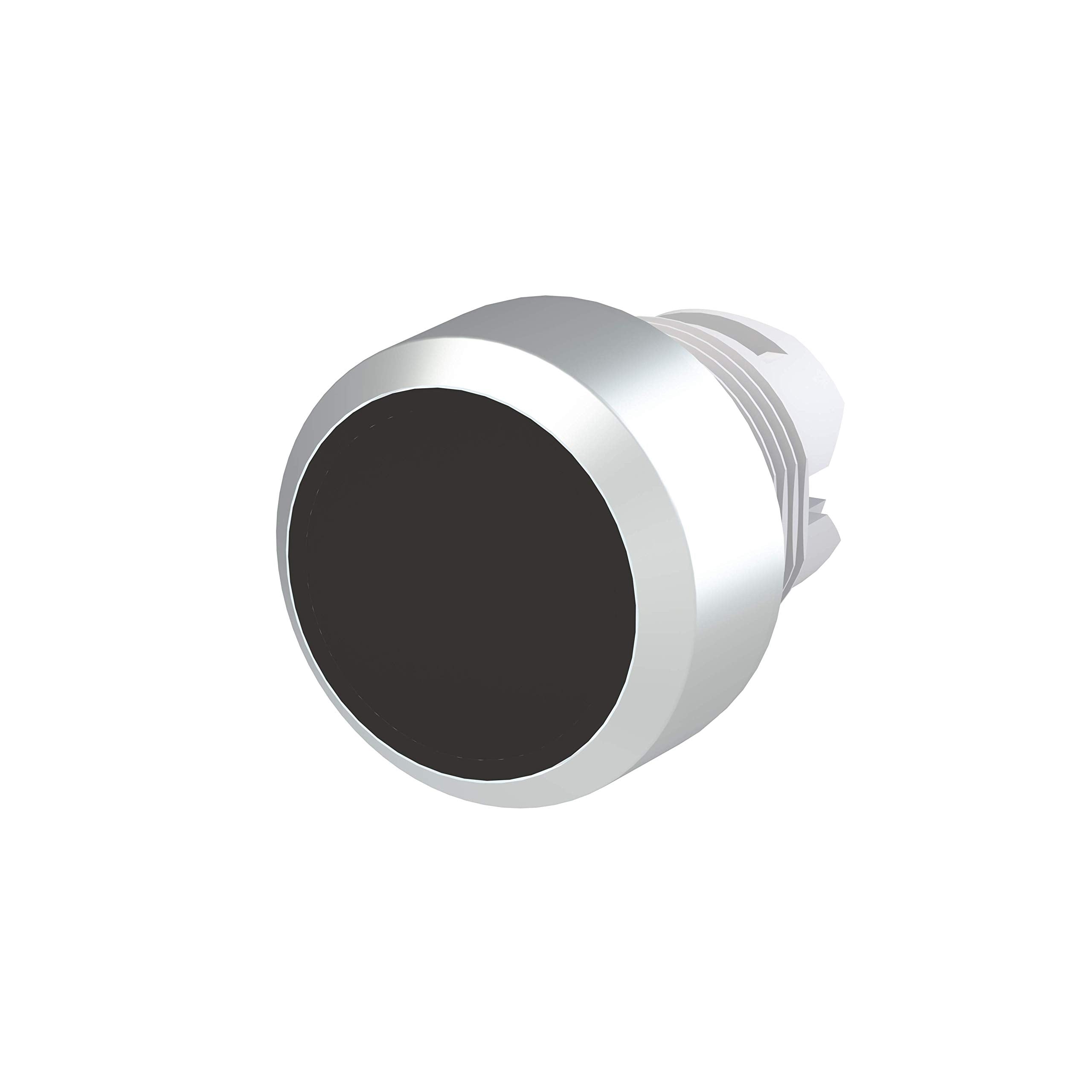

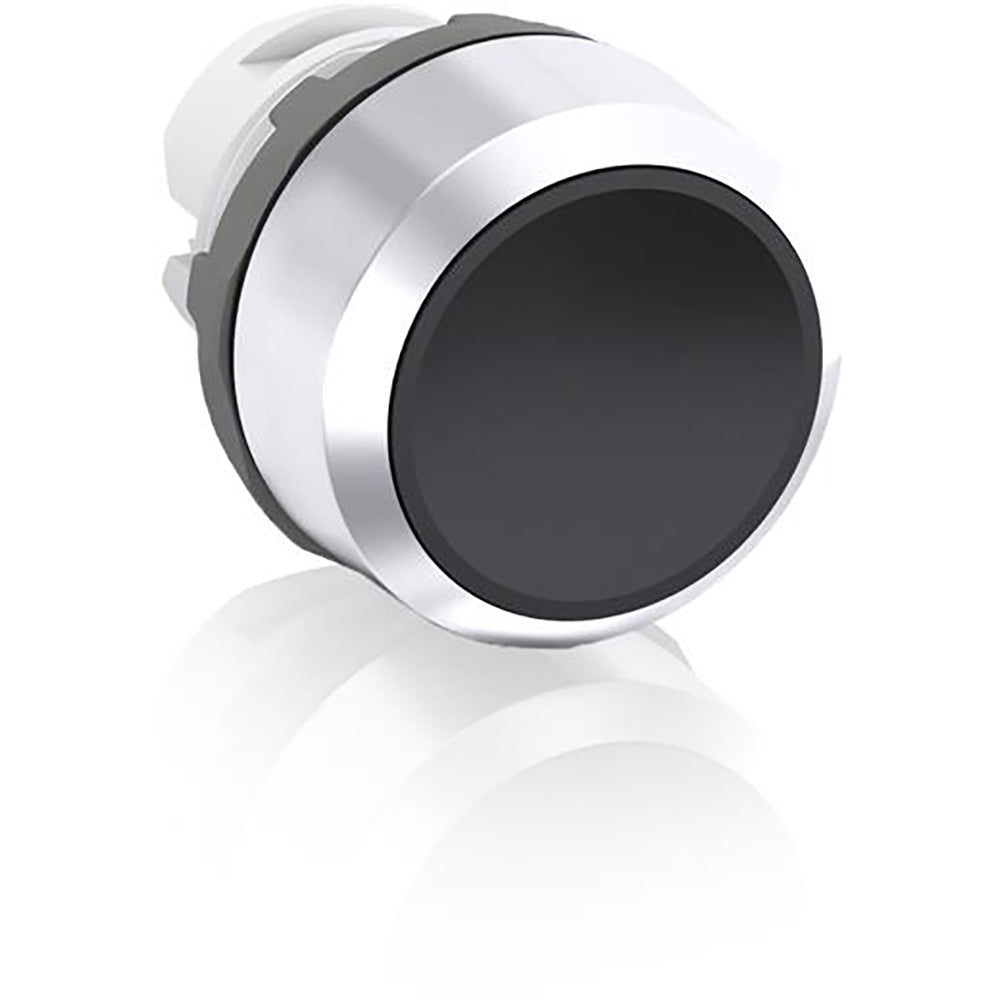

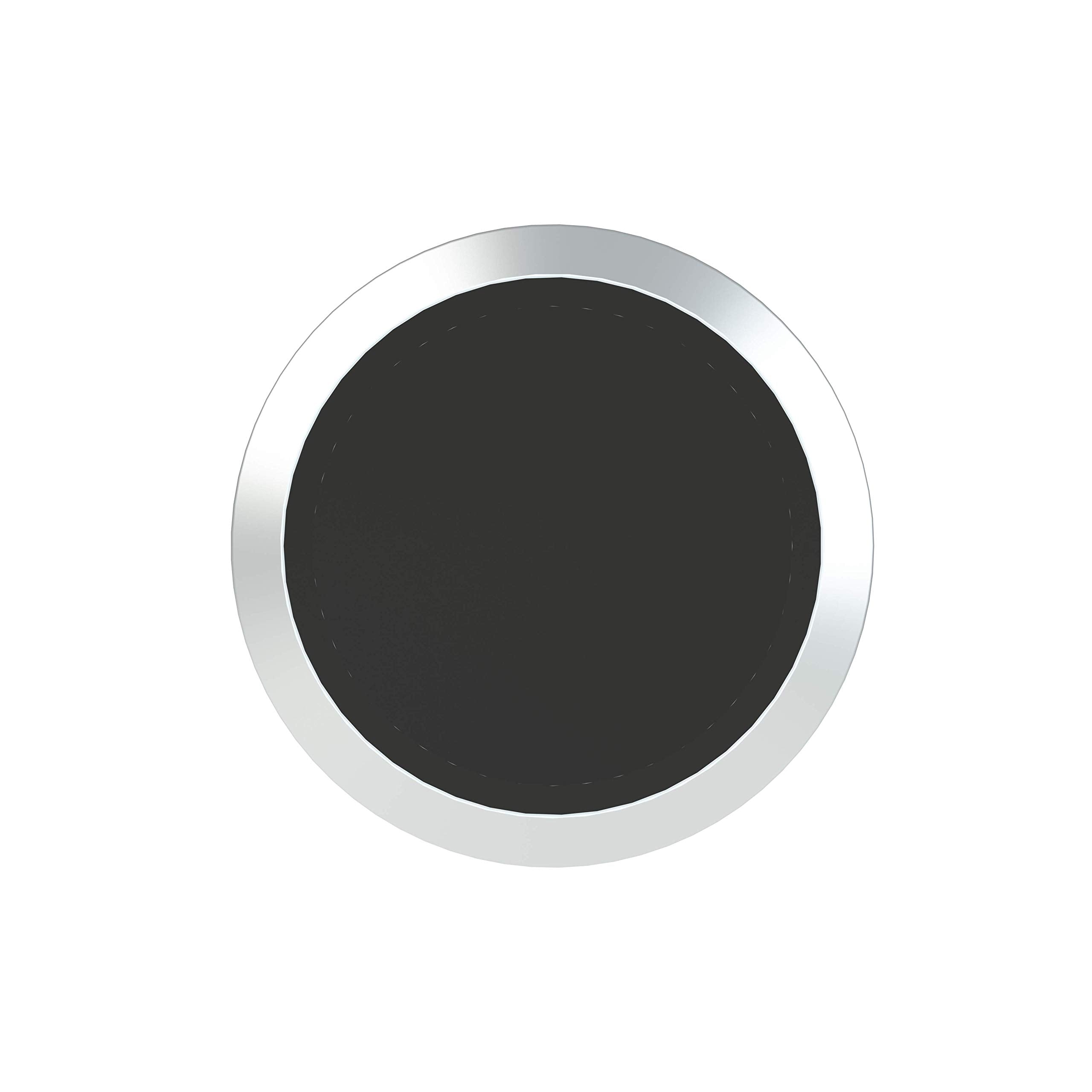

The Abb MP1-30B is a 22 mm modular momentary pushbutton operator for control panels and pilot device applications. It features a flush actuator with a chrome metal bezel, is non-illuminated and supplied without a contact block. The front is rated IP66 (NEMA 4X) and the unit supports tool-free snap-on panel mounting, mechanical durability to 2,000,000 operations and operation from -25 to +70 °C.

• 22 mm modular momentary pushbutton with flush actuator and chrome metal bezel
• Front protection IP66; compatible with NEMA 1, 3R, 4, 4X, 12, 13; mechanical durability 2,000,000 cycles
• Non-illuminated; supplied without contact block; tool-free snap-on panel mounting; operating temperature -25 to +70 °C

Product Highlights

22 mm modular momentary pushbutton, flush actuator, chrome bezel, front IP66/NEMA 4X, non-illuminated, no contact block

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: MP1-30B
• Country of Origin: Sweden

Technical Specifications

• Brand: ABB
• MPN: MP1-30B
• Part Number: 530834
• Manufacturer Reference: 1SFA611100R3006
• Product Type: Pilot device / Pushbutton operator
• Size: 22 mm
• Mounting Hole Size: 22 mm
• Mounting Type: Panel mount
• Action: Momentary
• Actuator Style: Flush
• Bezel Material: Chrome metal
• Illumination: Non-illuminated
• Contact Block: Not included
• Front Protection Rating: IP66
• NEMA Rating: NEMA 1, 3R, 4, 4X, 12, 13
• Mechanical Durability: 2,000,000 operations
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -30 to +85 °C
• Dimensions: 1.10 x 1.14 x 1.30 inches
• Weight: 0.0529 lb (0.024 kg)
• Material: High chemical-resistance polycarbonate (body); chrome metal bezel

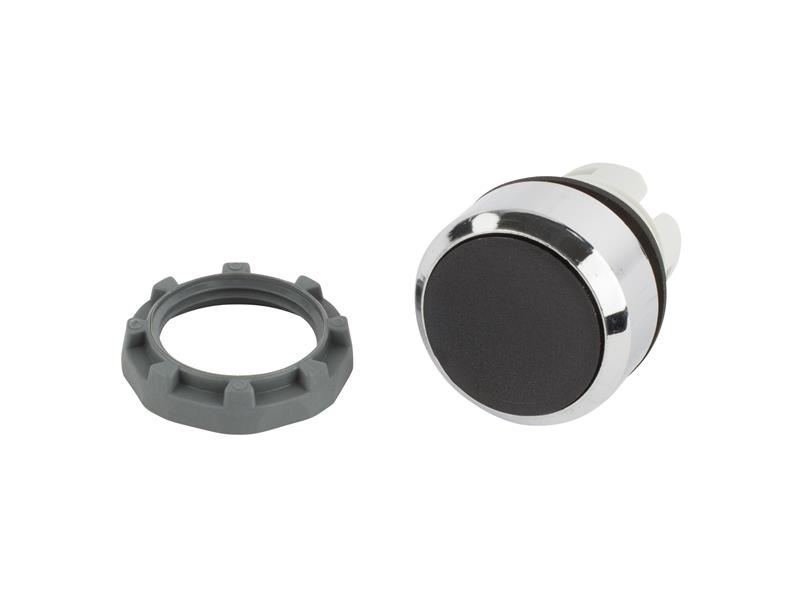

• Includes: Holder
• Standards/Approvals: CSA certified; UL listed; RoHS compliant
• UNSPSC Code: 39121500
