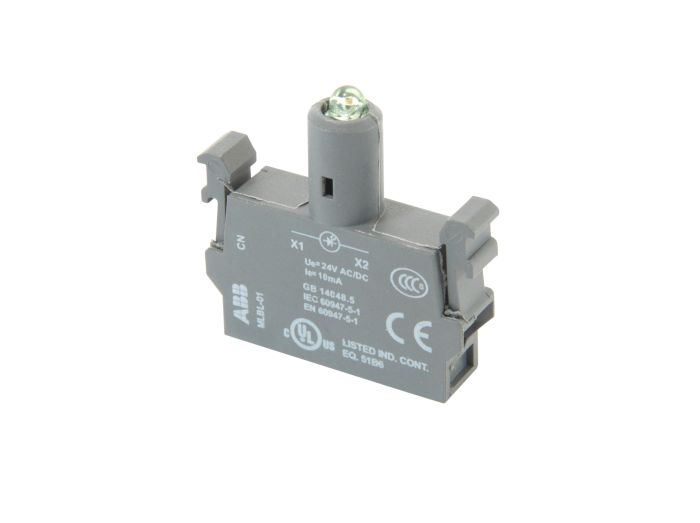

Abb MLBL-01G Lamp Block 24V

Product Description

The ABB MLBL-01G lamp block is designed for front mounting applications. It has built in leakage current protection. This modular LED block operates at 24V AC/DC and features an integrated green LED for illumination. It is mainly used for controlling 3-phase motors and generally for controlling power.

• Built in leakage current protection
• Modular LED block - 24V AC / DC
• Integrated LED

Product Highlights

The ABB MLBL-01G lamp block provides reliable and efficient illumination for various control applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: MLBL-01G
• Country of Origin: Unknown

Technical Specifications

• Voltage Rating: 24 V AC / V DC
• Amperage Rating: 9.2 mA
• Lumens: 1500 mcd
• Wavelength: 520 nm
• Type: LED Block
• Standard: RoHs; CSA; cUL; CE; GOST
• Application: Mainly used for controlling 3-phase motors and generally for controlling power c
• Family group: MOTOR CONTROL
• Manufacturer: ABB
• Special Features: Modular LED block - 24V AC / DC; integrated LED - Green - Illuminated
• Series: Modular Series
• Supply Voltage: 24 VAC/VDC
• Lamp Type: LED
• Function: LED Block
• Illumination: Illuminated
• Rated Insulation Voltage: 690V
• Mechanical Life: 10 million operations (contact block)
• Terminals: #14-20 AWG
• Contact Material: Silver
• Mounting: 0.874" (2.25 cm) hole
• Operating Temperature: -13 to 122 F (-25 to 50 C)
• Panel Thickness: 0.059" to 0.236" (0.15 to 0.6 cm)
• Protection Rating: NEMA type 1, 3R, 4, 4X, 12, 13
• MPN: MLBL-01G
• Terminal Type: Screw Clamp
• Mounting type: Front
• Manufacturer Name: ABB
• UNSPSC: 39121534
