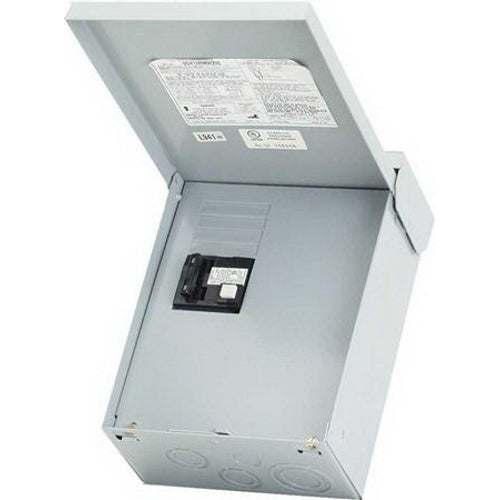

ABB - Midwest Electric UG412RMW260 GFI Disconnect Spa Panel 120/240 VAC 60 A 2 Poles

Product Description

The ABB - Midwest Electric UG412RMW260 is a GFI disconnect spa panel that operates at 120/240 VAC and is rated for 60 Amps. This panel is designed for use with spas, hot tubs, and similar applications where GFI protection is necessary. It features an enclosure rated NEMA 3R, indicating its suitability for outdoor use.

• Two poles with a short circuit current rating of 10 kA
• Surface mounting capability, dimensions are ten inches high by seven and one half inches wide by four inches deep
• Constructed from steel and finished with a powder coating for durability

Product Highlights

This panel is compliant with NEC requirements, making it a reliable choice for residential and light commercial installations.

Product Information

Standard Information

• Manufacturer: ABB - Midwest Electric
• Manufacturer Part Number: UG412RMW260

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Phase: 1
• Short Circuit Current Rating: 10 kA
• Enclosure: NEMA 3R
• Dimensions: 10 in H x 7-1/2 in W x 4 in D
• Material: Steel
• Mounting Type: Surface
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cUL/UL Listed
