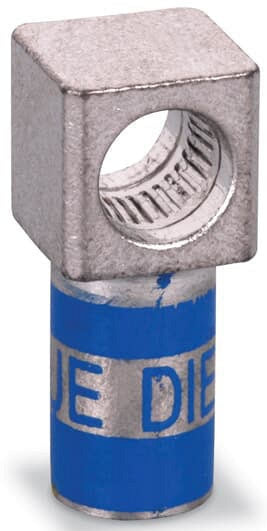

ABB MD1614F-1 T&B Motor Disconnect

Product Description

The ABB MD1614F-1 is a reliable motor disconnect designed for efficient connections. It features a color-coded system for easy identification and is suitable for conductor sizes ranging from sixteen to fourteen AWG. This product operates at voltages up to five kilovolts and is ideal for applications requiring a dependable motor lead connection.

• Designed for 600 volt AC and 5 kV applications
• Constructed from high conductivity beryllium copper
• Quick assembly with no additional hardware needed

Product Highlights

This motor disconnect simplifies the connection process, allowing for quick motor changes without the need for tools.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621070314

Technical Specifications

• Application: For 600 VAC and 5 kVAC applications
• Color Code: Blue
• Conductor Size: 16 to 14 AWG
• Conductor Type: Beryllium Copper
• Dimensions: 0.78 in L x 0.38 in W
• Manufacturer Part Number: MD1614F-1
• Material: Copper
• Mounting Hole Size: 1/4 in
• Specifications: Body Size 1, Tin Plated
• Standards/Approvals: CSA Certified | UL File No. E9809
• Strip Length: 3/8 in
• Type: 1-Load Female
• Voltage Rating: 600 VAC to 5 kV
