ABB MD1210F-1 T&B MOTOR DISCONNECT

Product Description

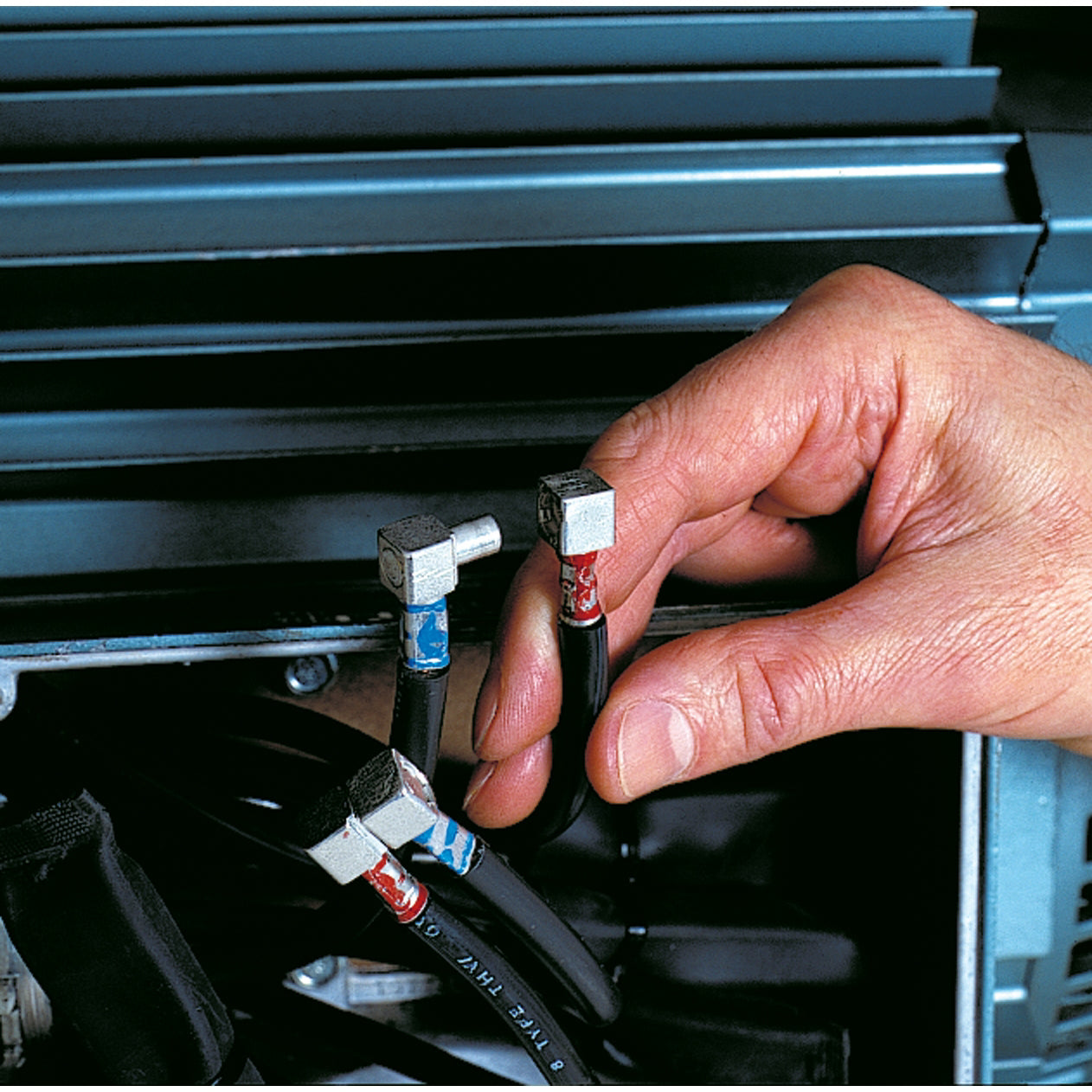

ABB MD1210F-1 is a T&B Motor Disconnect designed for secure connections in electric motor applications. This product accommodates 12 to 10 AWG beryllium copper conductors and supports voltage ratings from 600 VAC to 5 kV. Its innovative design allows for easy installation and removal without needing tools or loose connections.

• Female disconnects provide reliable beryllium copper connections.
• Designed for one line to one load (2-wire) applications.
• Quick assembly reduces labor time.

Product Highlights

The design facilitates a quick, safe disconnect with no risk of cutting wire insulation. It meets or exceeds the performance of traditional bolted connections.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Product Number: MD1210F-1

Technical Specifications

• Application: For 600 VAC and 5 kVAC applications
• Voltage Rating: 600 VAC to 5 kV
• Conductor Size: 12 to 10 AWG
• Conductor Type: Beryllium Copper
• Dimensions: 0.78 in L x 0.38 in W
• Body Size: 1
• Material: Copper
• Mounting Hole Size: 1/4 in
• Standards/Approvals: CSA Certified | UL File No. E9809
• Color Code: Yellow
• Strip Length: 3/8 in
