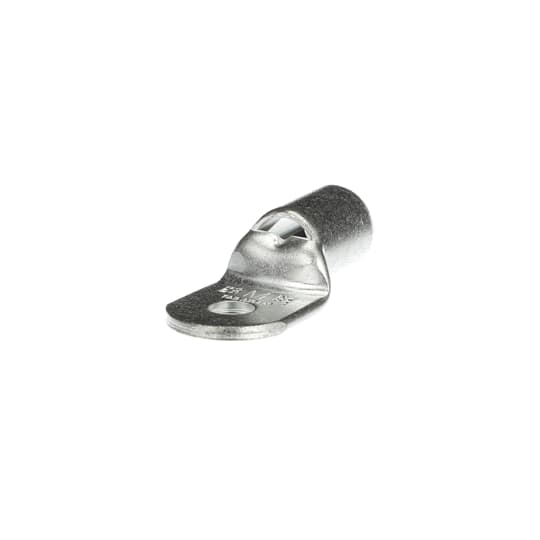

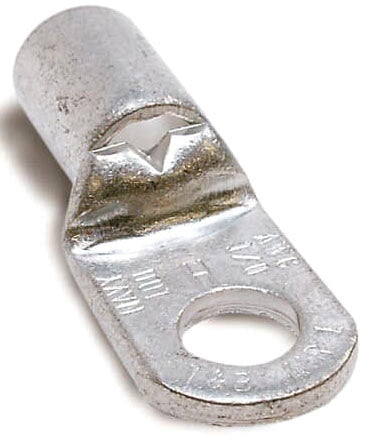

ABB M973 Non-Insulated Large Tubular Ring Terminal - 4/0-250MCM, 3/8bolt (50/Pkg)

Product Description

ABB M973 is a non-insulated large tubular ring terminal designed for wire sizes ranging from 4/0 AWG to 250 kcmil. This product facilitates secure electrical connections in various applications. It features a length of two point four inches and a width of one point one two inches. The bolt hole size is three eighths inch. This product comes in a package of fifty.

• Wire range of 4/0 AWG to 250 kcmil
• Constructed from electrolytic copper for high conductivity
• Compatible with crimping tools with single or double indentor

Product Highlights

ABB M973 terminal is made from copper and features a tin-plated finish for enhanced corrosion resistance and conductivity.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: M973

Technical Specifications

• Conductor Size: 4/0 AWG to 250 kcmil
• Stud Size: 3/8 inch
• Length: 2.4 inches
• Width: 1.12 inches
• Voltage Rating: 600 VAC
• Temperature Rating: 150 degrees C
• Material: Copper
• Finish: Tin Plated
