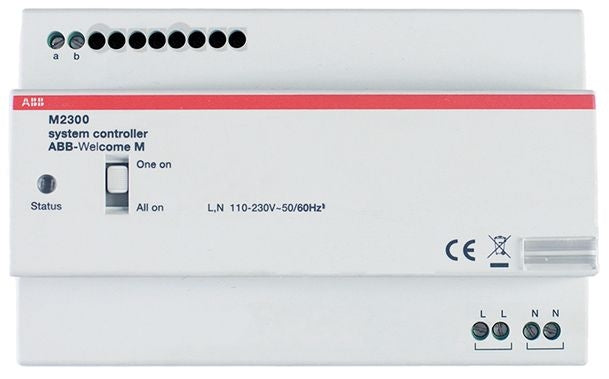

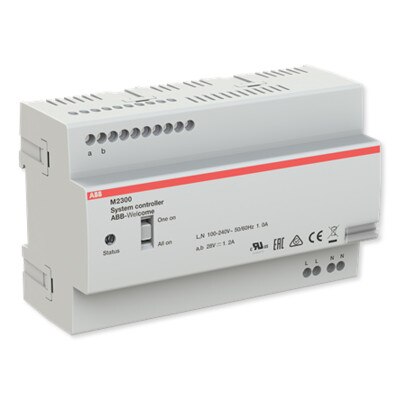

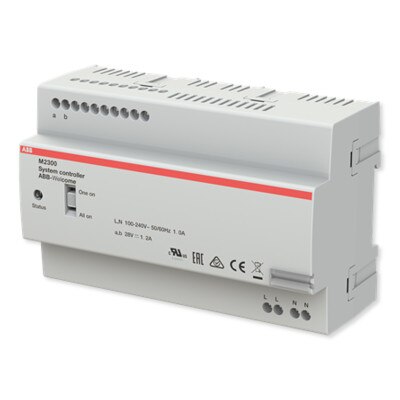

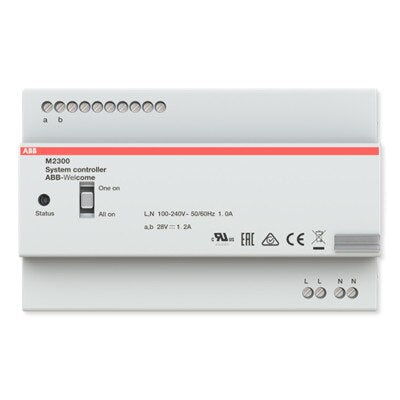

Abb M2300-101 System Controller, MDRC, 1200mA, With One On/All On Setting

Product Description

The ABB M2300-101 System Controller MDRC is designed for comprehensive access control and entry system integration. It combines hardware and firmware to manage door stations, video intercoms, entry terminals, and communication modules. It supports both indoor and outdoor entry points and provides seamless programming of user credentials.

• Provides power and communication to ABB-Welcome system components
• Operates in either "All On" or "One On" mode
• LED indicates system operating status

Product Highlights

The system controller offers a versatile architecture, supports organized infrastructure, and scalable deployment for professional-grade performance in life safety and security networks. DIN rail mounting allows for clean installation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: M2300-101

Technical Specifications

• UNSPSC Code: 46171600
• Manufacturer Part #: M2300-101
• EAN: 6955891818026
• System Capacity: 9 Guard Units per System 60 Buildings per System 250 Indoor Stations per Building 9 Outdoor Stations per Building (including gate and other outdoor stations) 2 Locks per Outdoor Station
• Operating Temperature: -13° to 131°F (-25° to 55°C)
• Storage Temperature: -40° to 158°F (-40° to 70°C)
• Protection: IP20
• Single-Wire Clamps: 2 x 0.28 mm2 ~ 2 x 1 mm2
• Fine-Wire Clamps: 2 x 0.28 mm2 ~ 2 x 1 mm2
• Mains Voltage: 100-240V, 50/60 Hz, 1A
• Bus Voltage: 28 ± 2VDC, 1.2A
• Size: 8U
• Dimensions: 3.54 x 5.67 x 2.56 inches
• Input Voltage: 20-30VDC
