ABB LB448-4X-G OCAL 1 1/4 IN GRAY PVC CTD UL4X LB FM8

Product Description

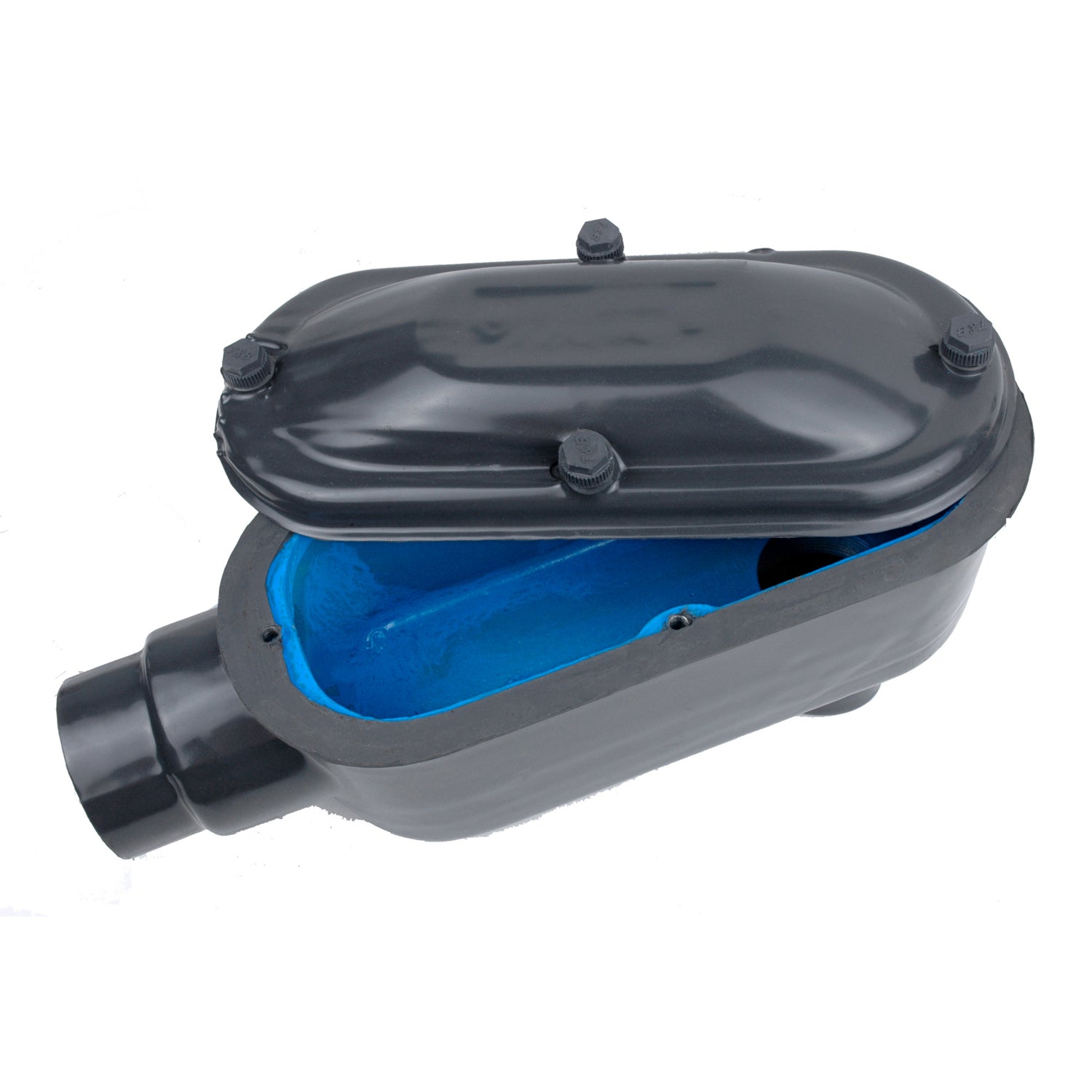

The ABB LB448-4X-G is a conduit body designed for electrical installations. This type LB conduit body features a hub size of one and one-quarter inches. It is constructed from iron and PVC coated for durability.

• UL listed type 4X rating for protection in outdoor environments.
• 23.5 cubic inches of capacity for conductor pull outlets.
• NEMA 4X rated enclosure protects against moisture, rain, and ice.

Product Highlights

This conduit body is ideal for use in harsh environments where moisture exposure is frequent. It is suitable for extending the life of your electrical systems.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Product Name: LB448-4X-G OCAL 1 1/4 IN GRAY PVC CTD UL4X LB FM8

Technical Specifications

• Type: Type LB
• Color: Dark Gray
• Capacity: 23.5 cu-in
• Connection Type: Thread
• Dimensions: 7.53 in L x 2.19 in W x 3.34 in H
• Enclosure: NEMA 4X
• Finish: PVC Coated
• Hub Size: 1-1/4 in
• Material: Iron
• Number of Hubs: 2
• Standards/Approvals: UL File No. E2969, cULus File No. E2969, CSA Certified
