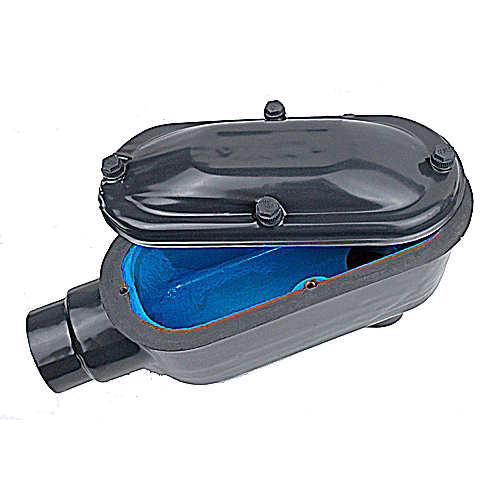

ABB LB28-4X-G Ocal 3/4 PVC-Coated LB-Style Conduit Body Form 8

Product Description

The ABB LB28-4X-G is an Ocal PVC-coated LB-style conduit body designed for efficient electrical conduit management. This conduit body features a three-quarter inch hub with a form eight configuration. It is made from durable cast iron and finished with a protective PVC coating, delivering enhanced durability in harsh environments.

• UL listed for type 4X and NEMA 4X ratings.
• Provides access for maintenance and future changes.
• Designed for multiple applications including splices and taps.

Product Highlights

The ABB LB28-4X-G conduit body is ideal for applications exposed to moisture, rain, and snow. Its robust design and NEMA rating make it suitable for outdoor use.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Ocal / Thomas & Betts

Technical Specifications

• Material: Iron
• Hub Size: 3/4 inches
• Type: Form 8 UL-4X Conduit Body
• Enclosure: NEMA 4X
• Dimensions: 5.56 inches length x 1.56 inches width x 2.44 inches height
• Capacity: 8 cubic inches
• Connection Type: Thread
• Number of Hubs: 2
• Standards: UL File No. E2969, cULus File No. E2969, CSA Certified
