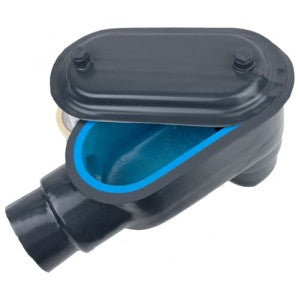

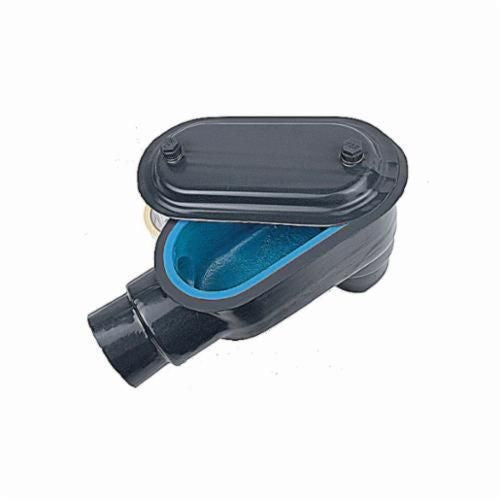

Abb LB17-G Conduit Body LB Shape Form 7 1/2 Inch

Product Description

The ABB LB17-G is a Conduit Body with LB Shape, Form 7, and a size of 1/2 Inch/16 Metric. It provides openings for making splices and taps in conductors, connecting conduit sections, and providing taps for branch conduit runs. It also makes 90° bends in conduit runs and provides access to conductors for maintenance.

• A minimum of .040 inch PVC coating is bonded to the exterior.
• Shipped with a cover and encapsulated stainless steel screws.
• Designed with a flat back, allowing more cubic inch capacity.

Product Highlights

The ABB LB17-G Conduit Body is PVC coated and provides access for maintenance and system changes.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: LB17-G
• Country of Origin: US - United States

Technical Specifications

• Form: Form 7
• Material: Iron
• Finish: PVC Coated
• Brand Name: Ocal
• Standard: UL E2969
• Hub Size: 1/2 in , 16 mm
• Length: 4.6 in
• Width: 1.35 in
• Height: 2.2 in
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC003618 Form part for installation tubes
• Model: Bend type LB (Canada)
• Material quality: Other
• Surface protection: Other
• Application: Conduit
• Connection Type: Threaded/ Set Screw
• Trade Size: 1/2 in.
• Number of Hubs: 2
• Type: LB
• Standard & Approvals: UL E2969 Listed, CSA Certified, RoHS Compliant
• Capacity: 4 cu-in
• Enclosure: NEMA RN-1
• Manufacture: ABB DISTRIBUTION CONTROL
• Mfr Catalog Number: LB17-G
• Size: 1/2
• Product Group: OCAL PVC SYSTEM
• Series: FORM 7
• UPC: 70450839005
• Product UPC: 70450839005
• UNSPSC: 39131708
• Product Category: Conduit Body
• Commodity Code: 2511
• Unique Product Key: 209295
