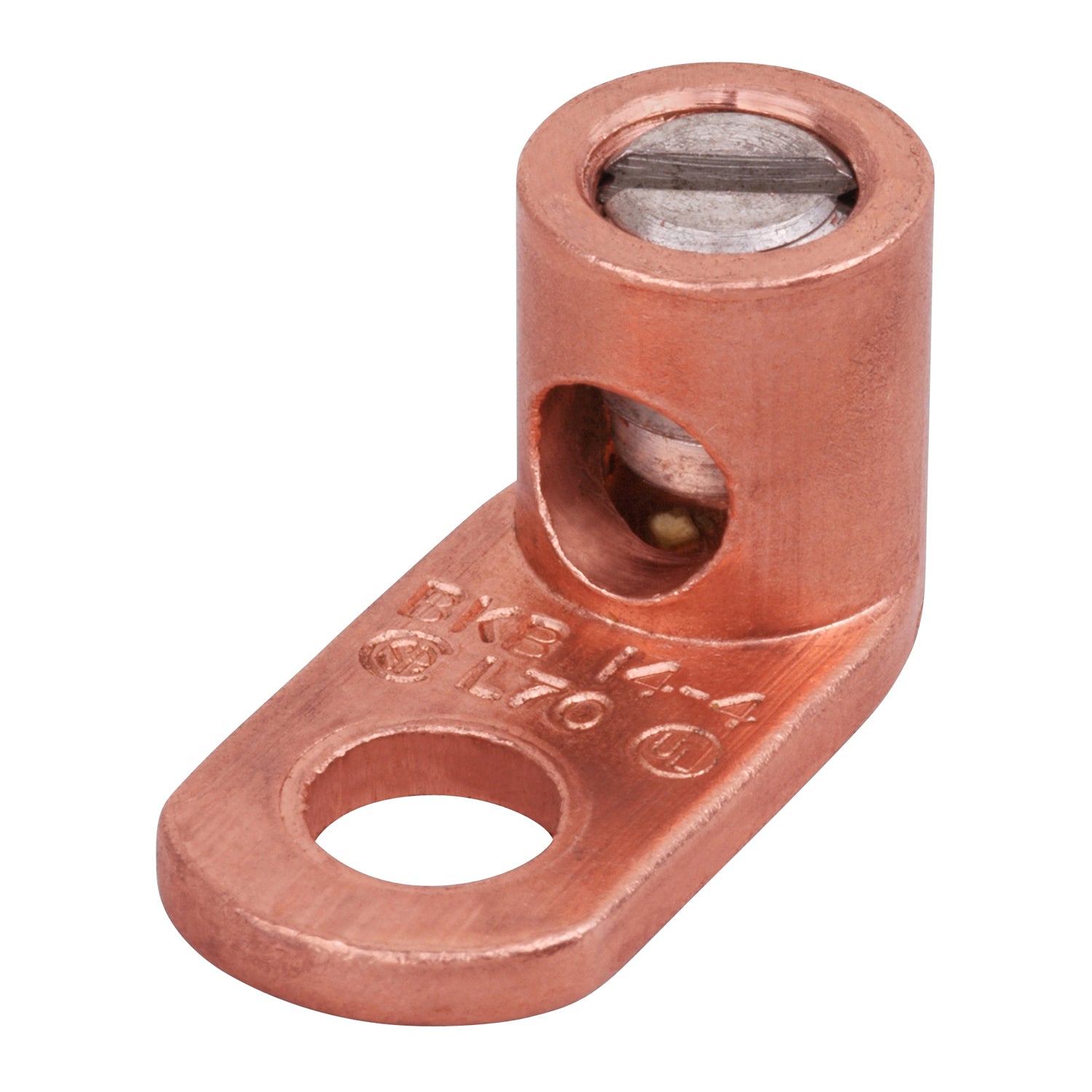

ABB L70 Blackburn L70 Terminal Lug Copper One-Hole Mount L70

Product Description

The ABB L70 Blackburn Terminal Lug is designed for effective wire termination. This terminal lug fits copper conductors within a range of fourteen to four AWG. It features a one-hole mount that simplifies installation. Its dimensions are one and one-eighth inches in length, seventeen thirty-seconds inches in width, and thirty-five sixty-fourths inches in height.

• Type L compact design for easy installation
• UL 486A tested for safety
• Manufactured from pure electrolytic copper for high conductivity

Product Highlights

The L70 Terminal Lug is suitable for various electrical applications, especially in tight spaces.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Conductor Size: 14 to 4 AWG
• Material: Copper
• Dimensions: 1-1/8 in L x 17/32 in W x 35/64 in H
• Number of Bolt Holes: 1
• Stud Size: 9/32 in
• Tongue Size: 21/32 in L x 17/32 in W x 3/32 in THK
• Tongue Type: Straight
• Standards/Approvals: CSA Certified, UL File No. E9809
