ABB L35 ITB 8AWG CU 1HOLE LUG CX35-36C

Product Description

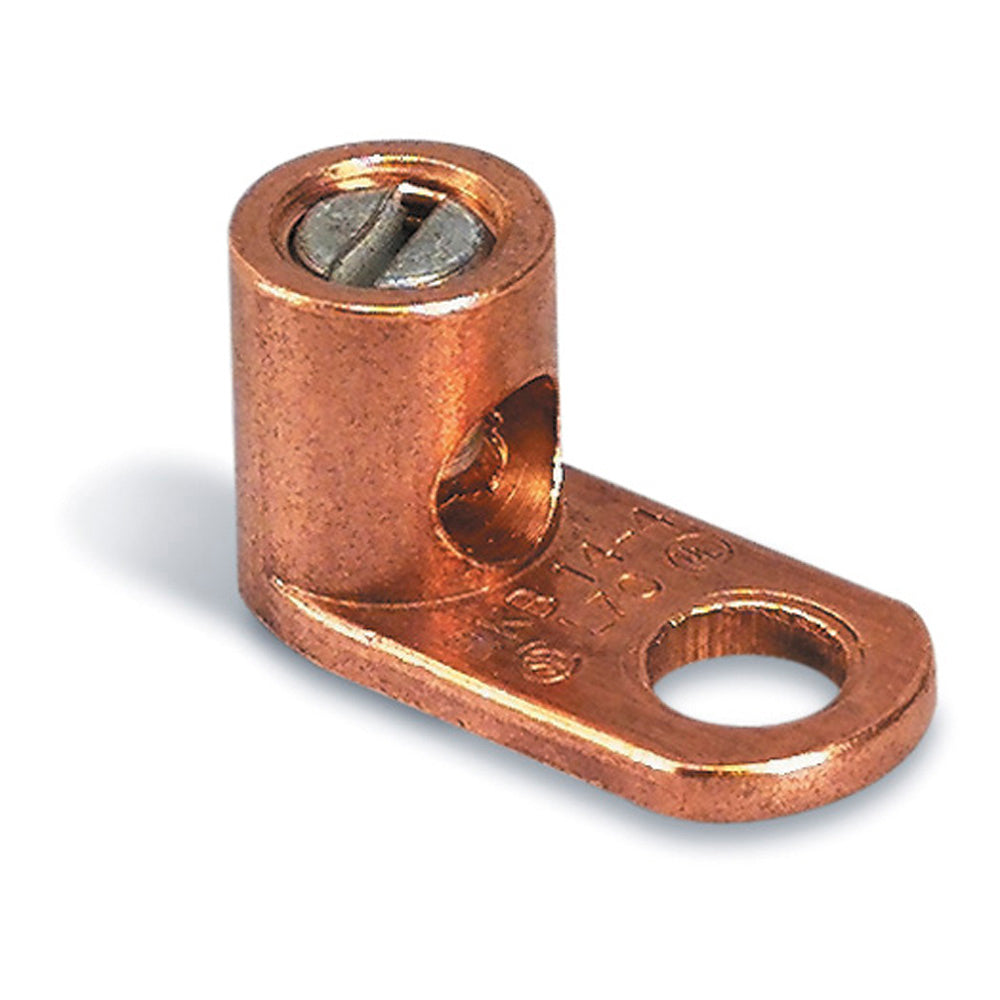

The ABB L35 is a mechanical connector designed for stranded solid copper conductors ranging from fourteen to eight AWG. This product features a single bolt hole for secure installation, making it suitable for various electrical applications. The connector is cold-forged from pure electrolytic copper, providing high conductivity and excellent durability.

• Constructed from pure electrolytic copper
• Features a single bolt hole
• Designed for use with stranded and solid conductors

Product Highlights

Ideal for use in confined spaces, the L35 ensures reliable connections with minimal installation effort.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78378613001

Technical Specifications

• Conductor Size: 14 to 8 AWG
• Conductor Type: Stranded Solid Copper
• Dimensions: 13/16 inches L x 3/8 inches W x 3/8 inches H
• Material: Copper
• Number of Bolt Holes: 1
• Standards/Approvals: CSA Certified, UL File No. E9809
• Stud Size: 13/64 inches
• Tongue Size: 1/2 inches L x 3/8 inches W x 3/32 inches THK
• Tongue Type: Straight
• Type: Type L Compact
