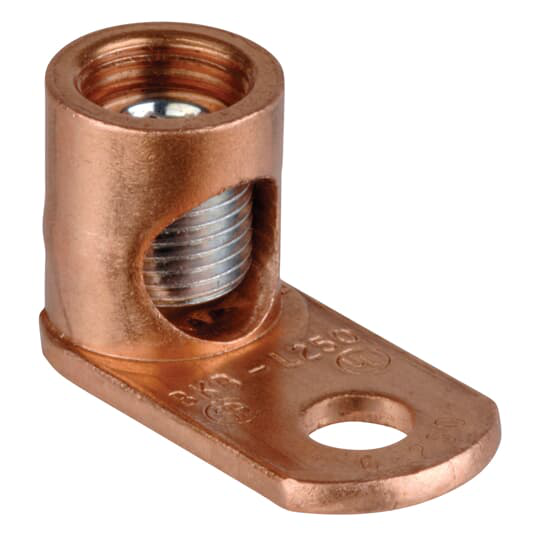

ABB L250 Blackburn L250 Terminal Lug Power 1-Hole

Product Description

ABB L250 Blackburn Terminal Lug is designed for copper connections. This terminal lug features a single conductor configuration and is suitable for use with stranded copper conductors ranging from six AWG to two hundred fifty kcmil. The design supports one bolt connection for secure fastening.

• Socket screw for added reliability
• UL 486A certified for safe electrical connections
• Cold forged from high conductivity copper

Product Highlights

This terminal lug is crafted for strength and durability. It performs well in low-profile areas.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Conductor Size: 6 AWG to 250 kcmil
• Material: Copper
• Height: 1-1/16 inches
• Width: 15/16 inches
• Length: 1-61/64 inches
• Number of Bolt Holes: 1
• Stud Size: 13/32 inches
• Tongue Size: 1-3/32 inches L x 15/16 inches W x 1/8 inches THK
• Tongue Type: Straight
• UL Standard: UL E9809
