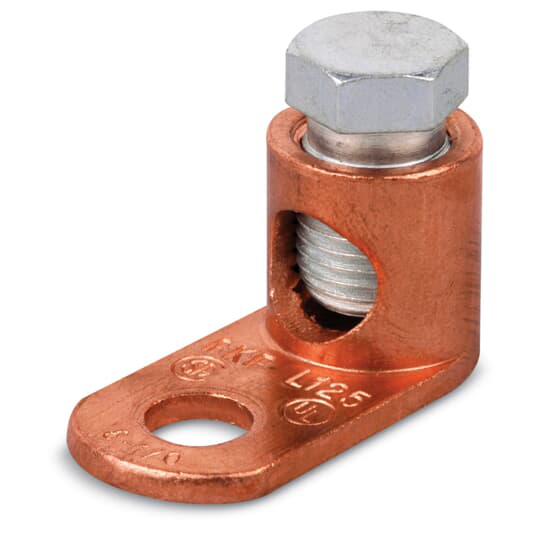

ABB L125H Blackburn L125H Terminal Lug Copper Single Conductor 1-Hole

Product Description

ABB L125H Terminal Lug offers a reliable solution for connecting copper conductors. This lug accommodates a conductor range of eight to one-zero stranded copper. It features a one-hole mount with a design optimized for ease of installation.

• Type L design for secure and stable connections
• Electrical compatibility with eight to one-zero gauge stranded copper conductors
• UL 486A tested for safety and compliance

Product Highlights

The Blackburn L125H lug is ideal for electrical applications requiring a strong, conductive connection in tight spaces.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Type: Copper Connectors
• Width: 47/64 inches
• Height: 3/4 inches
• Length: 1-1/2 inches
• Material: Copper
• Conductor Size: 8 to 1/0 AWG
• Number of Conductors: 1
• Number of Bolt Holes: 1
• Stud Size: 21/64 inches
• Tongue Type: Straight
• Tongue Size: 27/32 inches L x 47/64 inches W x 3/32 inches THK
• Specifications: 1-Conductor, Hex Screw
• Standards: CSA Certified | UL File No. E9809
