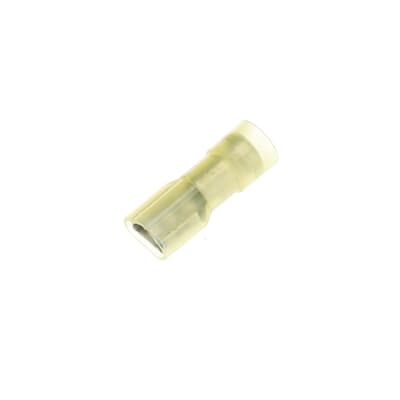

ABB KNF10-250FD-D Thomas & Betts Fully Insulated Nylon Female Disconnect

Product Description

The ABB KNF10-250FD-D is a fully insulated nylon female disconnect designed for wire sizes twelve to ten AWG. Its tab size is .250 inches by .032 inches and it is colored yellow. This disconnect is suitable for various applications including temporary connections to male disconnects and terminal blocks.

• Product designed for wire range 12-10 AWG.
• Rated for 600 volts with brass material.
• Features internal barrel serrations and funnel entry for secure connections.

Product Highlights

This disconnect provides a robust solution for wire termination with features that enhance safety and usability.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Disconnect Type: Female - 250 Series
• Insulation Type: Fully Insulated Nylon
• Flamability Class: Rated V-2 Per UL94
• Temperature Rating: 105 degrees C
• Box Quantity: 5000
• Finish: Tin Plated
• Width: 12.5 inches
• Height: 12 inches
