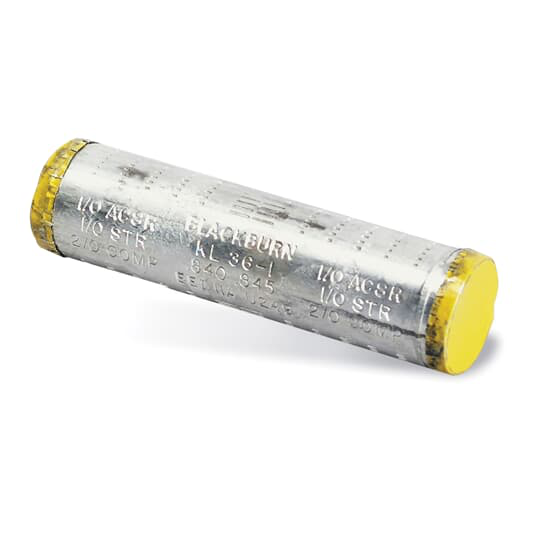

ABB KL58-1 Blackburn KL58-1 Compression Sleeve 3-1/2 Inch

Product Description

The ABB KL58-1 Blackburn Compression Sleeve is designed for the connection of aluminum and copper conductors. This compression splice supports wire ranging from three-aught ASCR to four-aught stranded compact. It is crafted from aluminum for reliable performance.

• Compatible with aluminum-to-aluminum and aluminum-to-copper connections.
• Meets ANSI C119.4 standards for quality and safety.
• Features a center stop for accurate conductor positioning.

Product Highlights

The Blackburn KL58-1 is ideal for various wire termination applications. It serves as a low-cost solution for reducing sleeves and ensures secure connections.

Product Information

Standard Information

• Brand: ABB
• Product ID: 1516183

Technical Specifications

• Size: 3-1/2 Inch
• Material: Aluminum
• Type: Non-Insulated
• Conductor Size: 3/0 AWG
• Connector Type: Compression, Parallel
• Connection Type: Compression
• Number of Conductors: 2
• Applications: For combinations of aluminum-to-aluminum and aluminum-to-copper conductors
