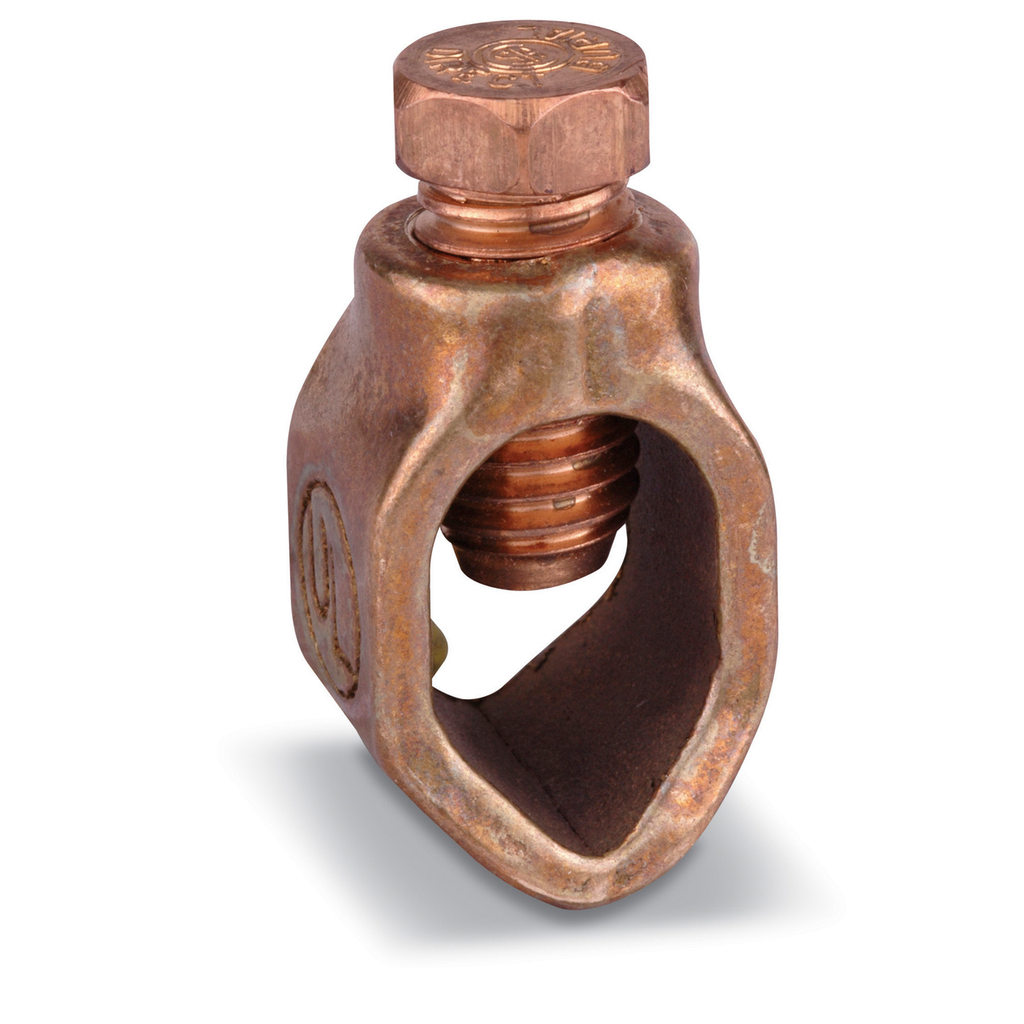

ABB JAB58H Thomas & Betts 5/8 Ground Rod Clamp 8 Sol. - 1/0 Str.

Product Description

The ABB JAB58H is a Type JAB Non-Insulated Ground Rod Clamp. It is designed for use with a rod size of five-eighths inches and accommodates wire ranges of eight stranded to one-aught stranded. Made of copper, this clamp is essential for establishing reliable ground connections in various applications.

• Cast from high-strength corrosion-resistant copper alloy
• UL listed for direct burial
• Includes hex head bolts for secure fastening

Product Highlights

This product offers a long bearing surface on the clamp to secure ground wires effectively. It ensures compliance with safety standards for grounding applications.

Product Information

Standard Information

• Brand: ABB
• Material: Copper

Technical Specifications

• Conductor Size: 8-1/0 AWG
• Rod Size: 5/8 in
• Type: Non-Insulated, Hex Head
• Dimensions: 11/16 in W x 2-13/64 in H
• Standard: UL E3060
• Application: Direct Burial Applications
• Manufacturer Part Number: JAB58H
• Standards/Approvals: CSA Certified, UL File No. E3060
