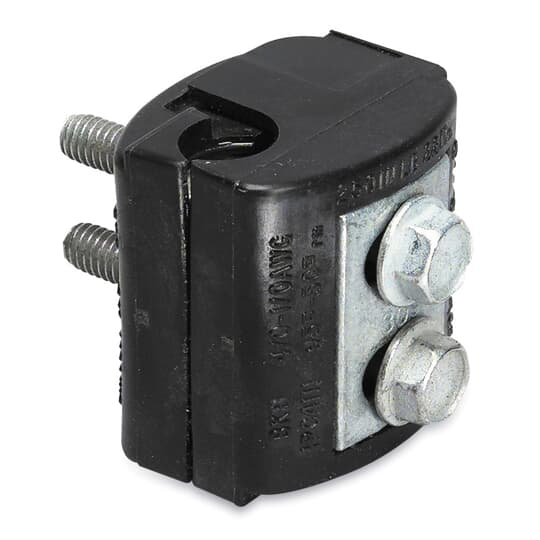

ABB IPC1102 Blackburn IPC Insulation Piercing Connector 600 VAC 8 to 2 AWG

Product Description

The ABB IPC1102 is an insulation piercing connector designed for aluminum and copper conductors. This type IPC connector accommodates conductor sizes from eight to two AWG and features a voltage rating of 600 volts. It is suitable for various applications including copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum connections. The self-insulated design makes it ideal for hot line applications.

• Conductor range: 8 to 2 AWG
• Voltage rating: 600 VAC
• Temperature rating: 90 degrees C

Product Highlights

This connector eliminates the need for conductor insulation stripping, performs as a splice or tab for non-tension applications, and requires no taping after installation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• MPN: IPC1102
• Conductor Type: Aluminum/Copper
• Dimensions: 1-17/32 in L x 2-9/16 in W
• Finish: TiN Coated
• Compliance: CSA Certified, UL E9809
• Application: For insulated conductors only
• Standard: UL 486A, UL 486B
