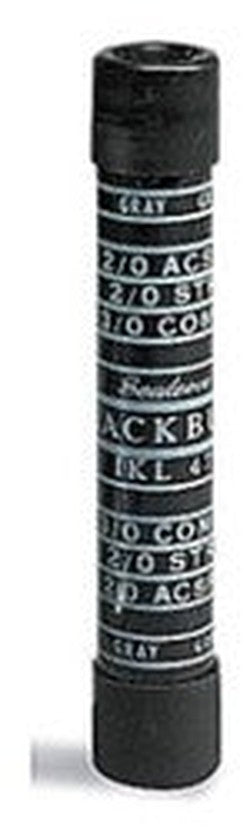

ABB IKL67 T&B Insul Service Entry Sleeve

Product Description

The Blackburn IKL67 is an insulated service entrance splice designed for connecting overhead distribution power lines. This splice accommodates ACSR, compact, or stranded conductors ranging from four ought to two ought AWG. It features a crimp and compression connection for reliable performance.

• Made for combinations of aluminum to aluminum and aluminum to copper conductors.
• Length of five and one-half inches.
• Pre-insulated for quick installation in residential or commercial settings.

Product Highlights

This splice provides high conductivity and effective insulation while preventing oxidation and moisture ingress.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78378605036

Technical Specifications

• Application: For combination of aluminum to aluminum and aluminum to copper conductors
• Color: Pink/Gray
• Conductor Size: 4/0 to 2/0 AWG
• Conductor Type: ACSR/Compact/Stranded
• Connector Type: Crimp/Compression
• Die Code: 840
• Length: 5-1/2 in
• Material: Aluminum
• Series: IKL
• Specifications: 2-Conductor, 0.522 to 0.564 in Dia End A, 0.414 to 0.448 in Dia End B
• Standards/Approvals: ANSI C119.4 | RUS Listed
• Type: Insulated
