Abb IB132-G Enclosure for Use with MS116 and MS132 Series Manual Motor Starters

Product Description

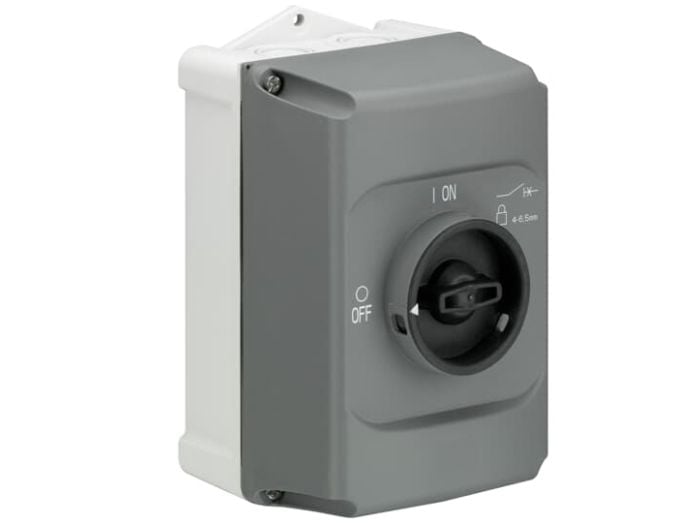

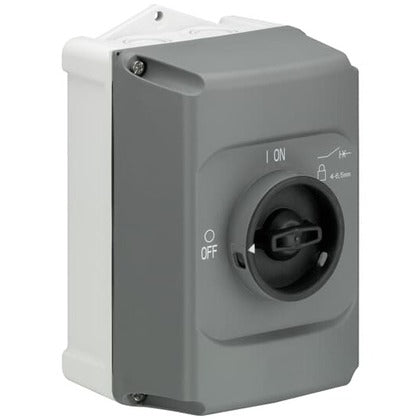

The ABB IB132-G enclosure is suitable for use with MS116 and MS132 manual motor starters. The combination of a manual motor starter and enclosure allows setup of all required control and protection functions for single machine installations. The handle is up to 3-times lockable in the OFF position.

• Suitable for Use With: MS116 and MS132 Manual Motor Starters
• Dimensions: 120 mm Height x 120 mm Width x 195 mm Depth
• Standard/Approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA 22.2 No 14

Product Highlights

The ABB IB132-G enclosure provides IP65 protection and is suitable for use with MS116 and MS132 manual motor starters.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: IB132-G

Technical Specifications

• Suitable For Use With: MS116 and MS132 Manual Motor Starters
• Standard/Approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA 22.2 No 14
• Brand Name: ABB
• MFR Part Number: IB132-G
• Item: Enclosure
• Style: Compact
• Material: Metal
• Finish Type: Painted
• Installation Type: Screw-In
• Specification Met: Csa, Ul
• Manufacturer: ABB
• Family Series: ABB Motors
• Description: Enclosure, Blk, IP65, Padlockable Handle
• Accessory Type: Enclosure
• IP/NEMA Rating: IP65, NEMA 12
